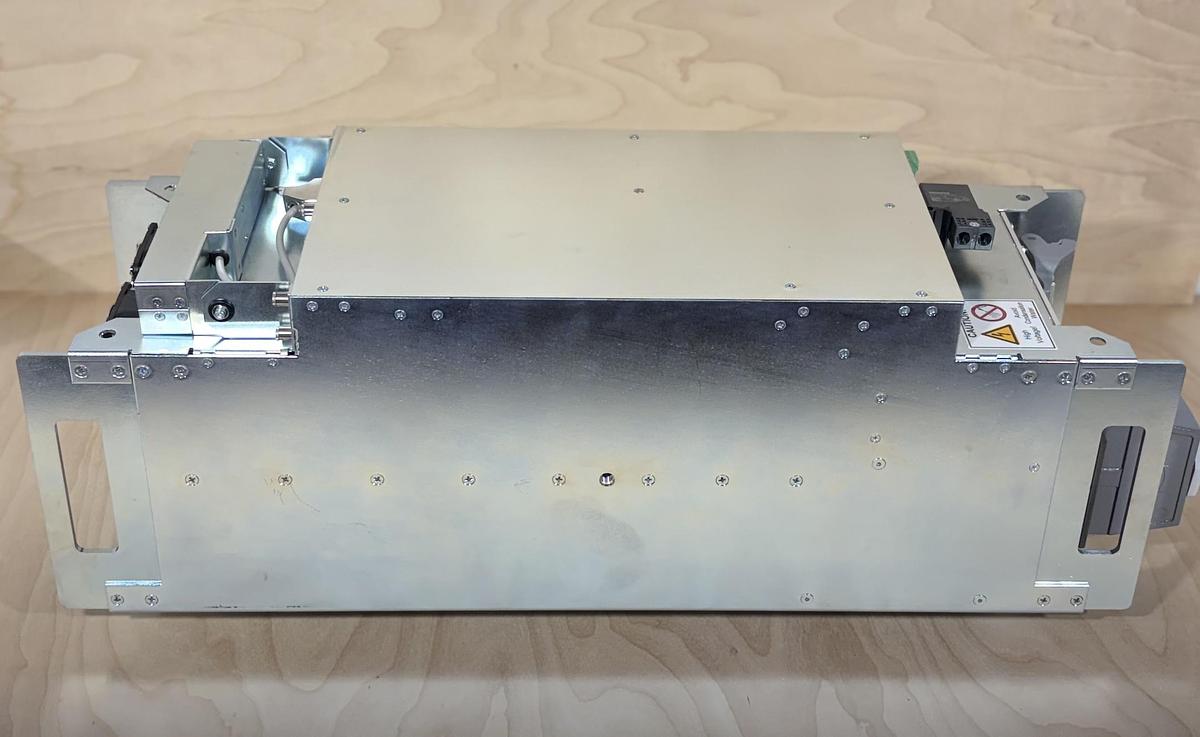

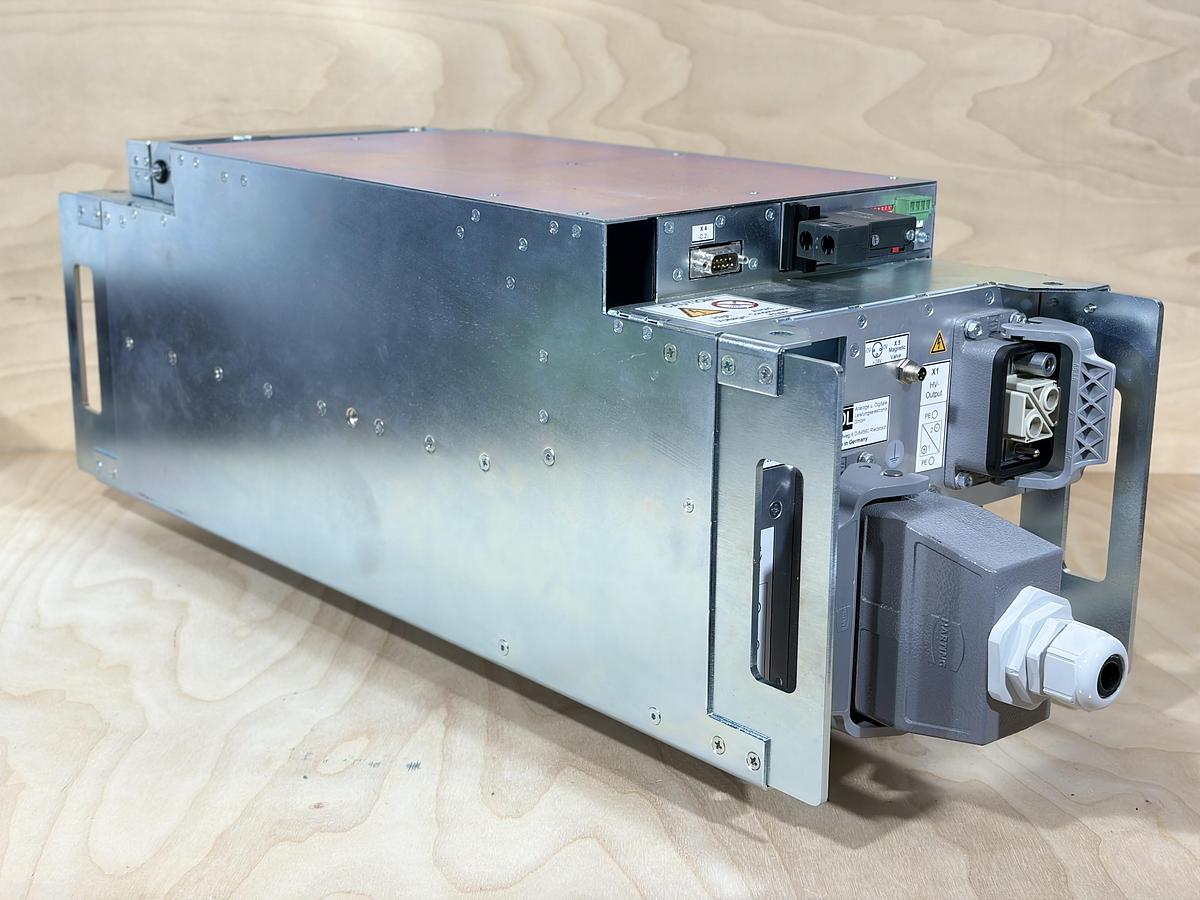

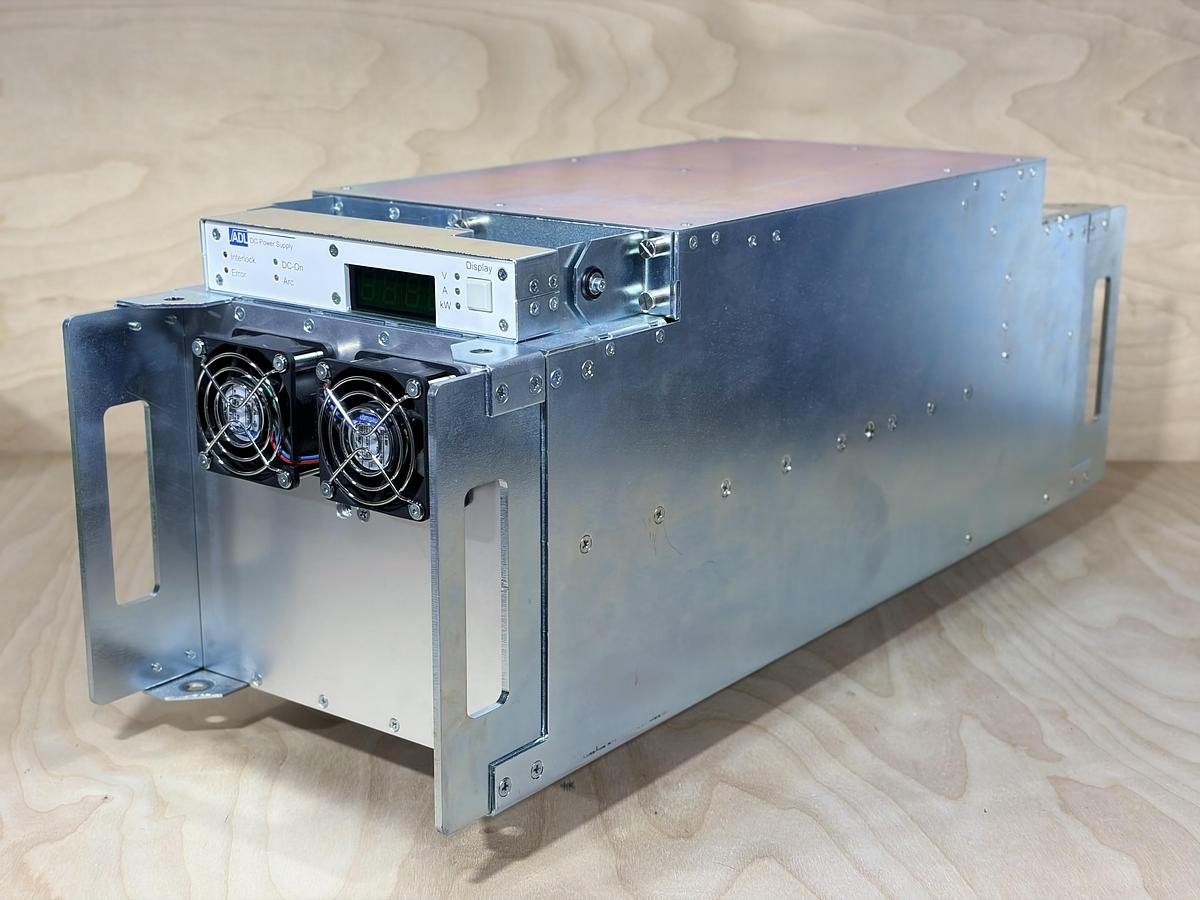

ADL HX 200/500 20 kW Water-Cooled DC Power Supply for Sputtering

For sale is an ADL HX 200/500 industrial DC power supply module, designed for sputtering and coating applications.

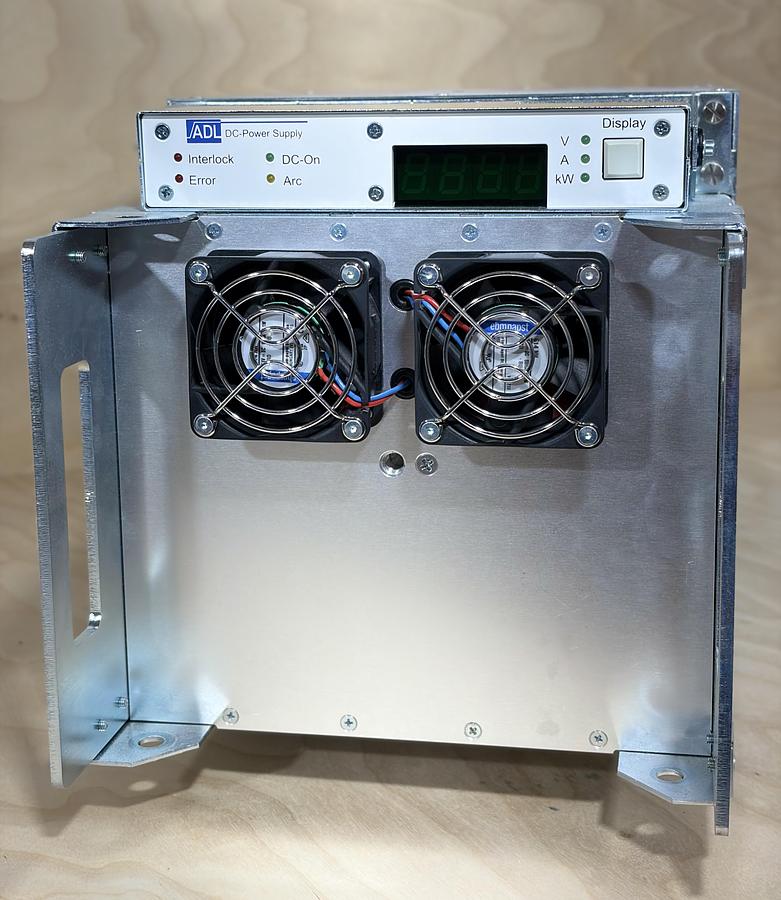

This unit was removed from a functioning system and is offered as used equipment. It is a compact, water-cooled DC power supply with integrated mounting flanges, removable display unit and automatic arc handling. The HX series is intended for integration directly into production equipment and can be controlled externally through its control interface.

• Manufacturer: ADL Analoge & Digitale Leistungselektronik GmbH
• Model: HX 200/500
• Type: Water-cooled DC power supply
• Output power: 20 kW
• Output voltage: 500 V DC
• Output current: 70 A
• Control modes: Current, voltage or power controlled
• Output accuracy: ±1% of nominal value
• Arc suppression: Automatic

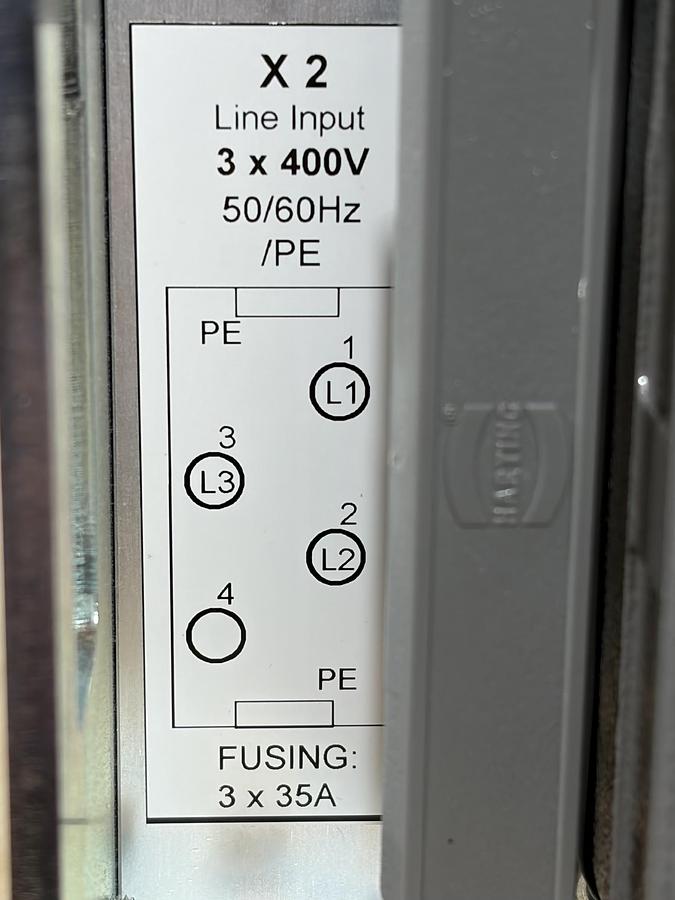

• Mains input: 3 × 400 V ±10%, 50/60 Hz, PE
• Cooling: Water cooling, minimum flow >3 L/min; 2–8 bar; water temperature below 40°C
• Dimensions without plugs: 218 × 222 × 645 mm (W × H × L)
• Weight: Approx. 37 kg
• Year of manufacture: 2010

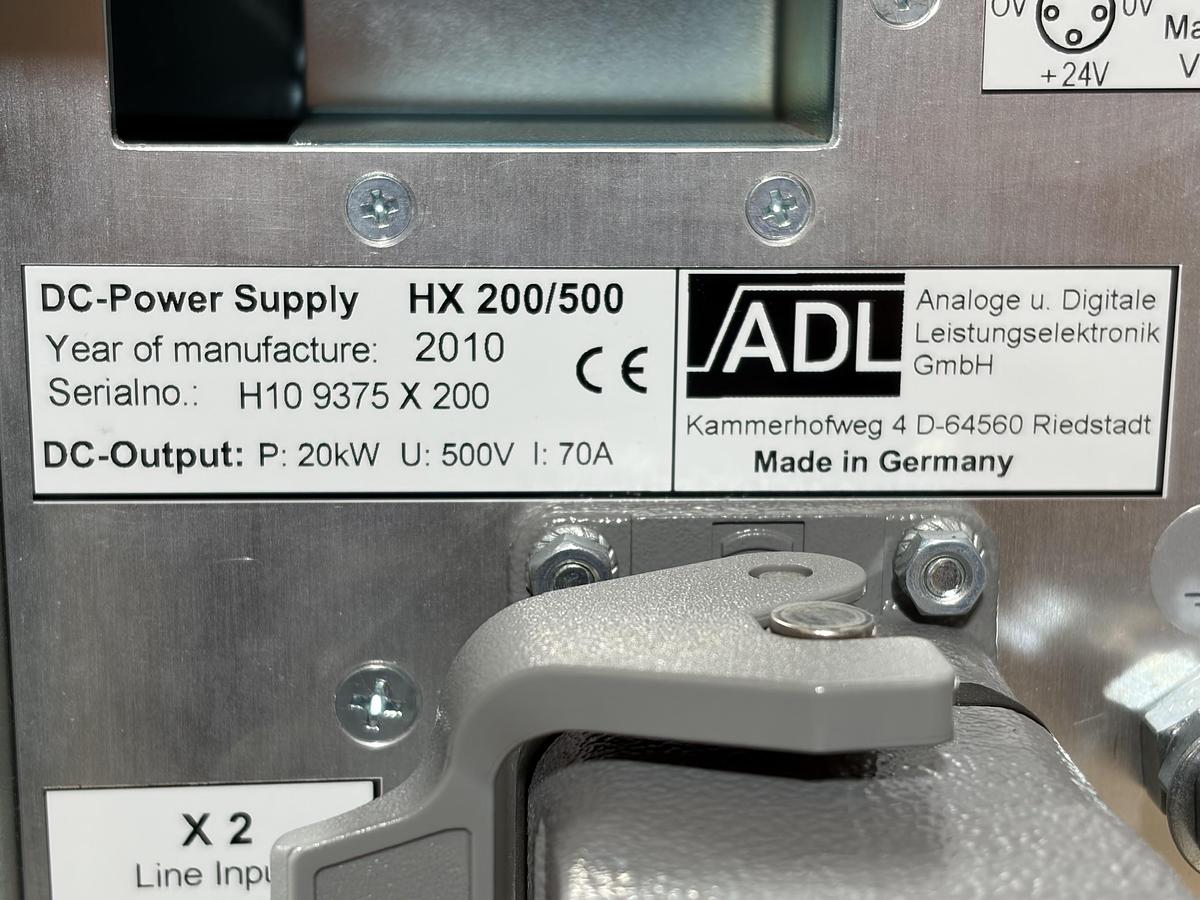

• Serial number: H10 9375 X 200
• Made in Germany

Used. Removed from a functioning system. Cosmetic signs of normal industrial use may be present. Please review all photographs carefully for the exact configuration and condition.
