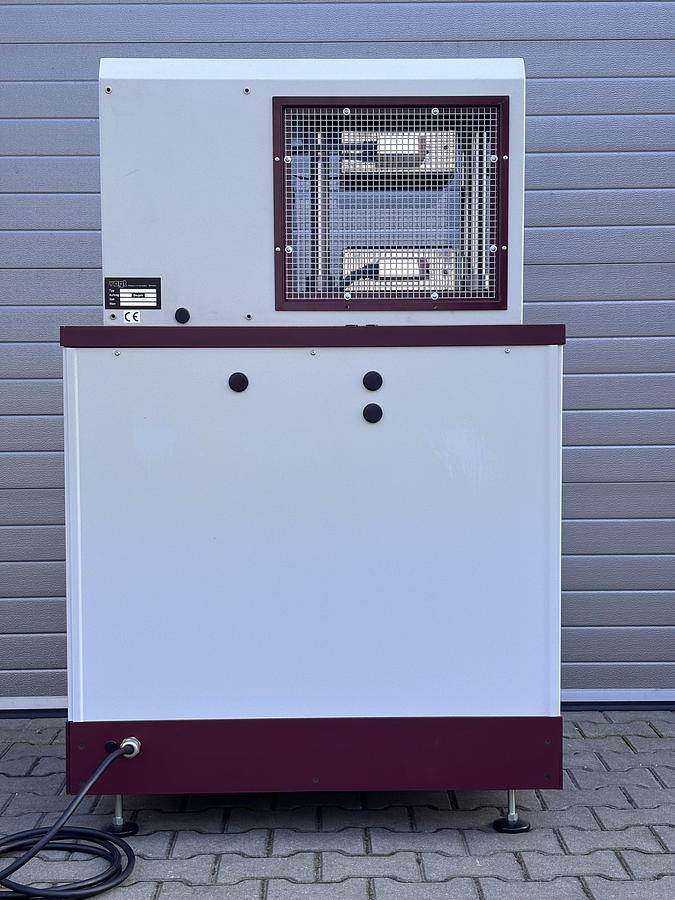

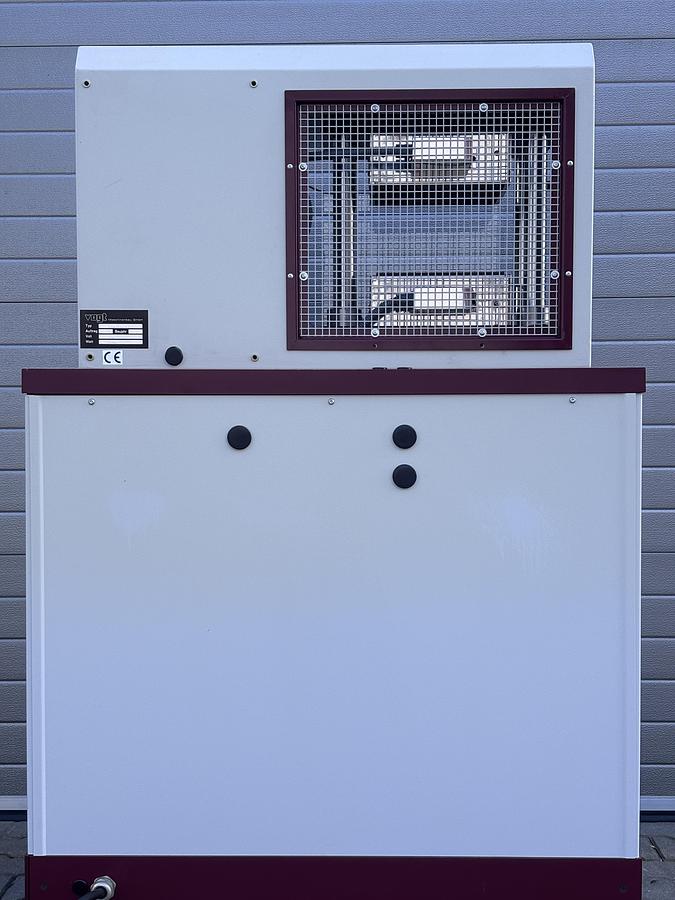

Vogt LaboPress P200S hydraulic laboratory press with heated platens

For sale is a professional Vogt LaboPress P200S hydraulic laboratory press in very clean and well-maintained cosmetic condition.

The machine is designed as a freestanding laboratory press for material testing, plastics, rubber and elastomer processing, composite materials, research and development, and laboratory sample preparation.

It is equipped with two heated press platens capable of reaching a maximum surface temperature of 300°C, with a maximum pressing force of 258 kN, approximately 25.8 metric tons.

Technical specifications

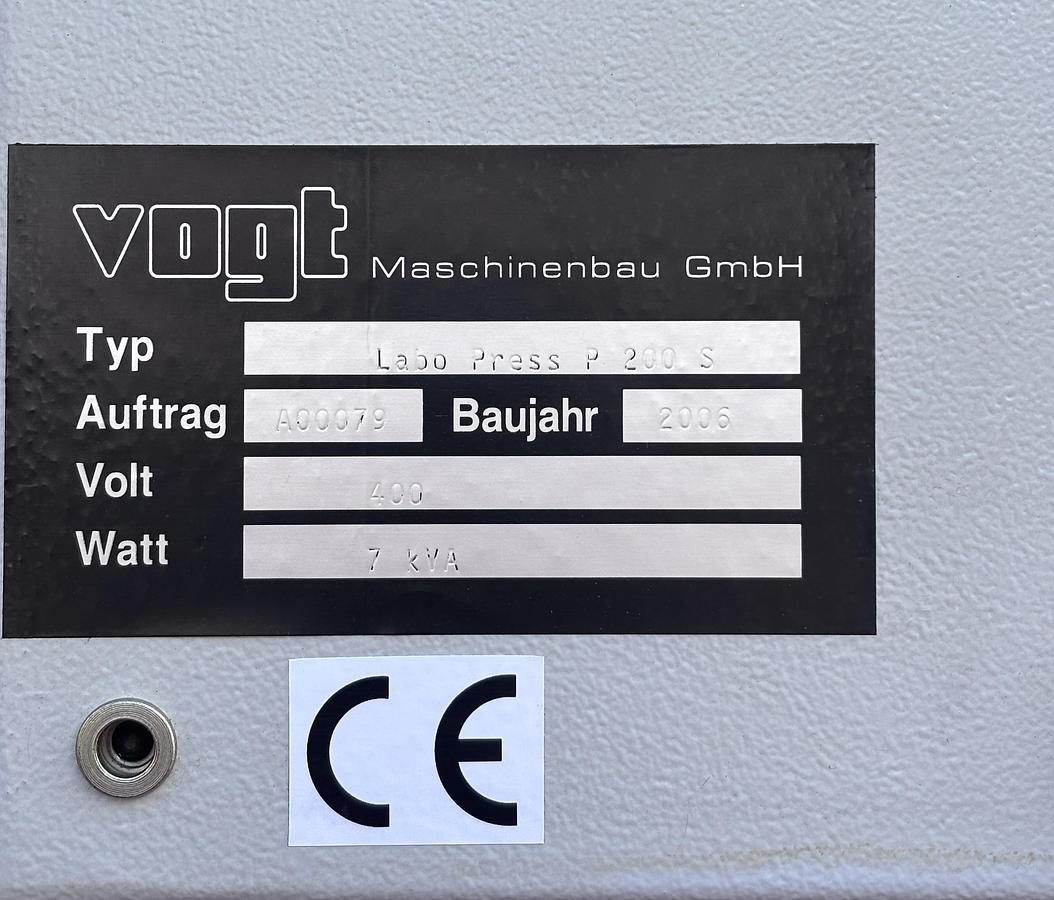

• Manufacturer: Vogt Labormaschinen
• Model: LaboPress P200S
• Type: freestanding hydraulic laboratory press
• Maximum pressing force: 258 kN
• Equivalent pressing force: approximately 25.8 metric tons

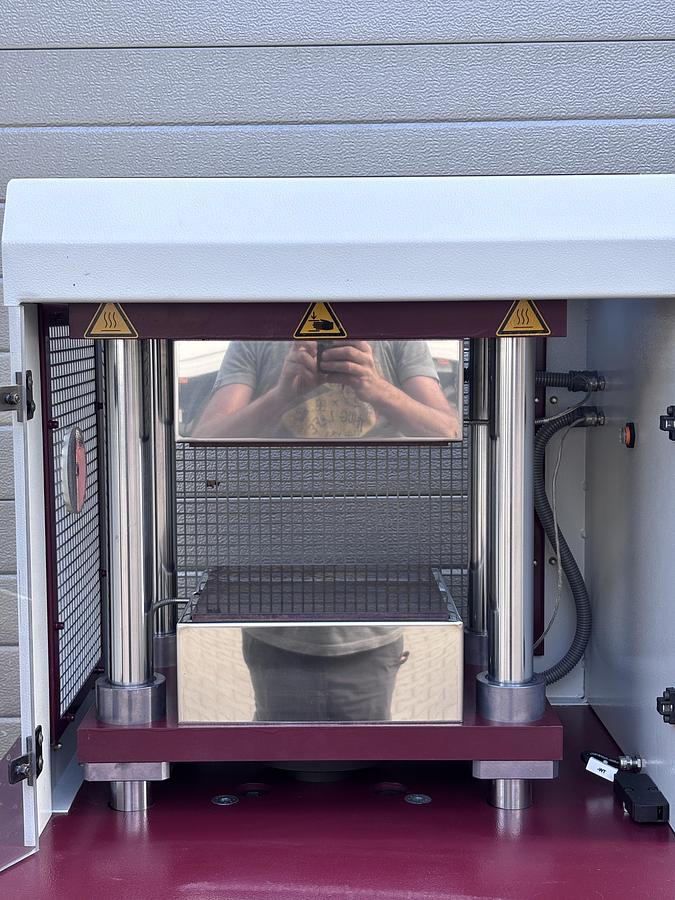

• Working area of press platens: 200 × 200 mm
• Overall platen dimensions: 250 × 250 mm
• Maximum platen surface temperature: 300°C
• Heating capacity of upper platen: max. 6 kW
• Heating capacity of lower platen: max. 6 kW
• Total heating capacity: max. 12 kW
• Maximum press opening: 148 mm
• Overall dimensions: approximately 900 × 700 × 1,600 mm
• Electrical connection: industrial power plug

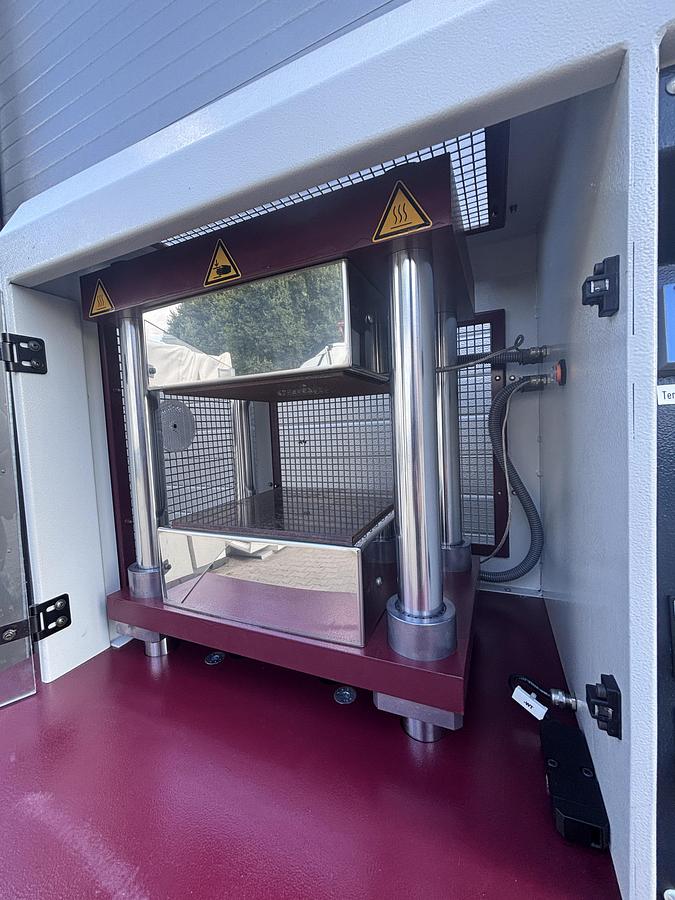

• Enclosed working area with transparent safety door

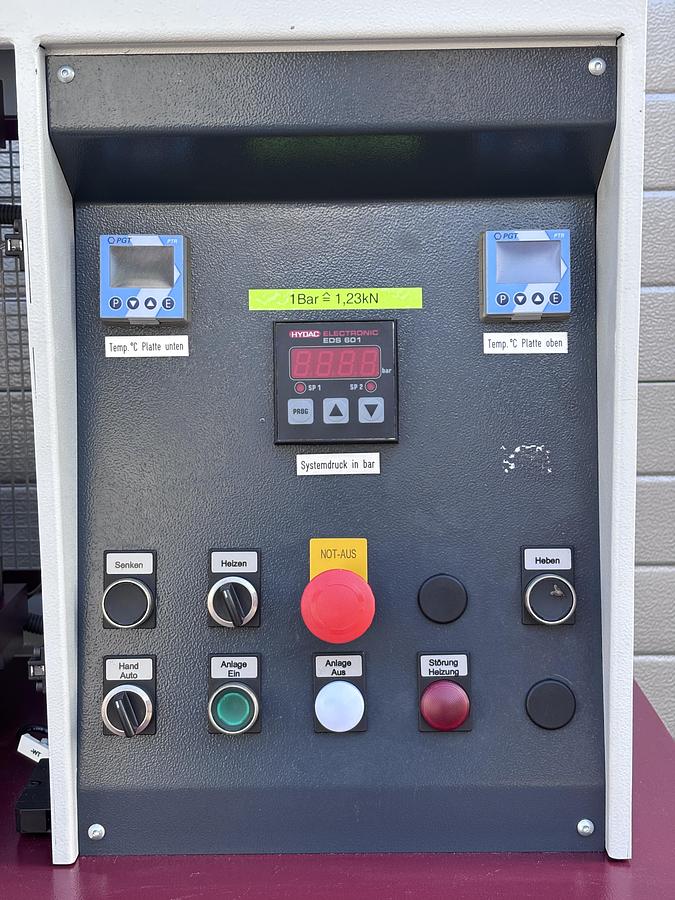

• Separate temperature control for upper and lower platens

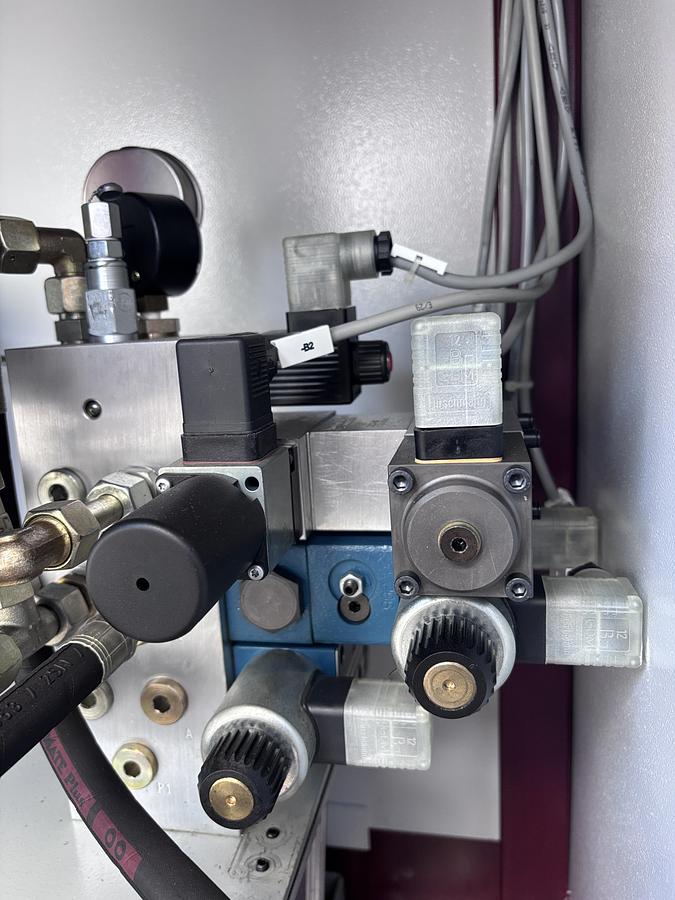

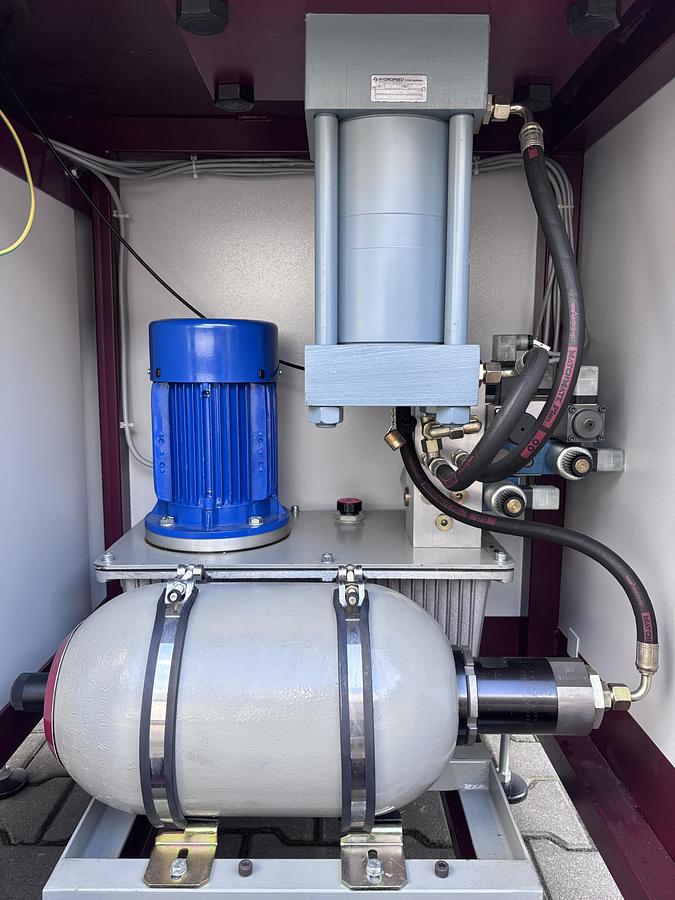

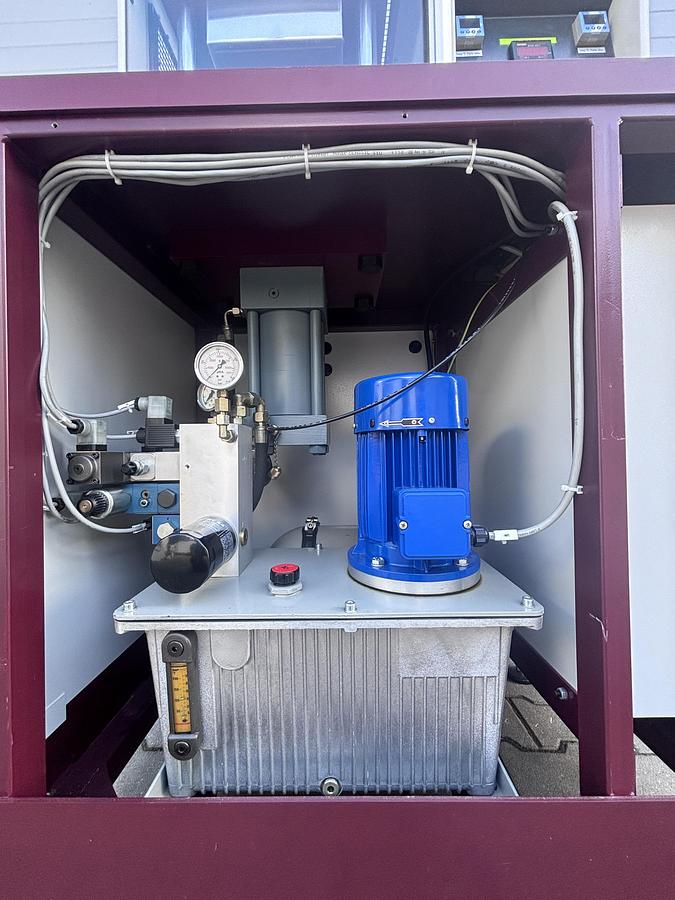

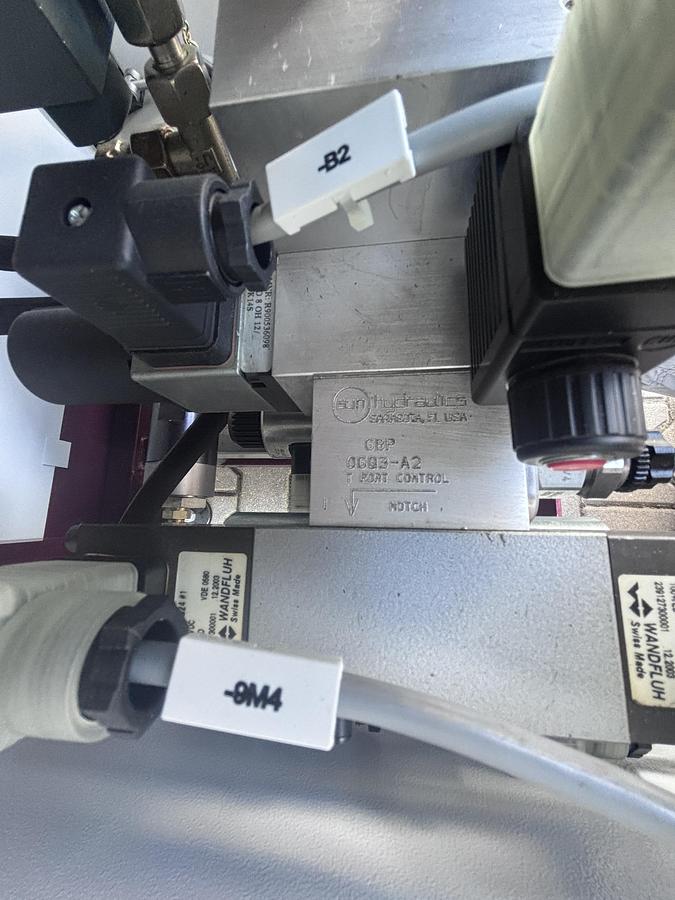

• Hydraulic pressure control
• Time and process control

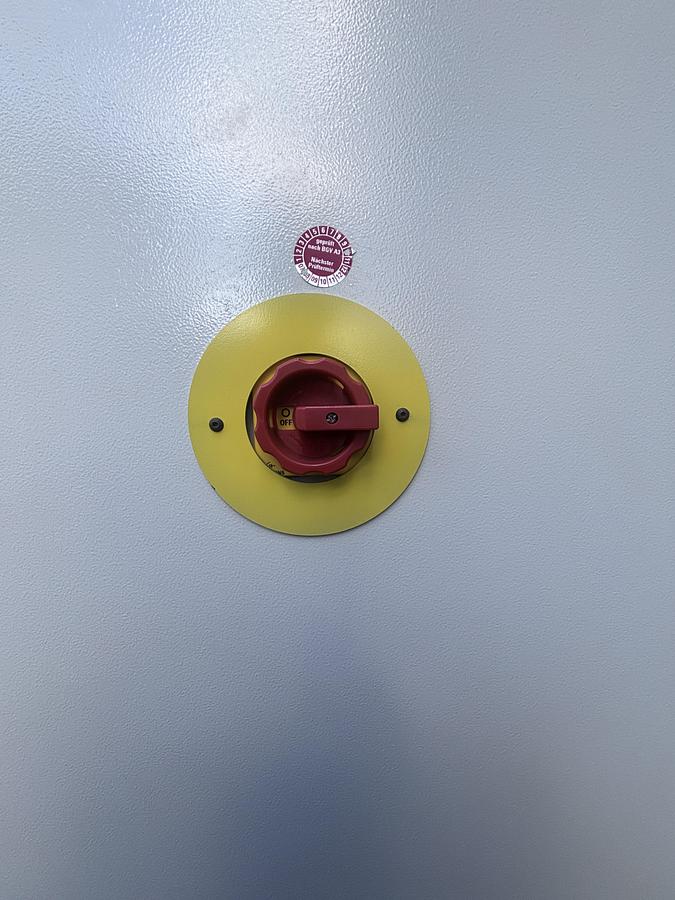

• Emergency stop button

Depending on the original configuration, the LaboPress series may support programmable pressure, time and temperature sequences, as well as controlled pressure holding. The exact installed functions of this particular machine should be verified from the control system and available operating modes.

Condition

The machine is in very good and clean cosmetic condition.

Normal signs of previous use and age may be present. Please inspect all original photographs carefully, as they form an integral part of the description.
