Ingersoll Rand Nirvana OF N132 132 kW + D1360 EHS air dryer HOC

For sale is a complete industrial compressed-air system manufactured by Ingersoll Rand, consisting of an oil-free Nirvana OF N132 WC HOC rotary screw compressor and a matching D1360 EHS heat-of-compression desiccant air dryer.

Both units were manufactured in 2014 and originate from a German research institute.

SCOPE OF SUPPLY

1. Ingersoll Rand Nirvana OF N132 WC HOC

• Oil-free, water-cooled rotary screw compressor

• Variable-speed drive / VSD

• Year of manufacture: 2014

• Serial number: UCV1004275

• Rated power: 132 kW

• Maximum allowable working pressure: 10 bar

• Electrical supply: 380–480 V / 3-phase / 50 Hz

• Motor speed: 3,000 rpm

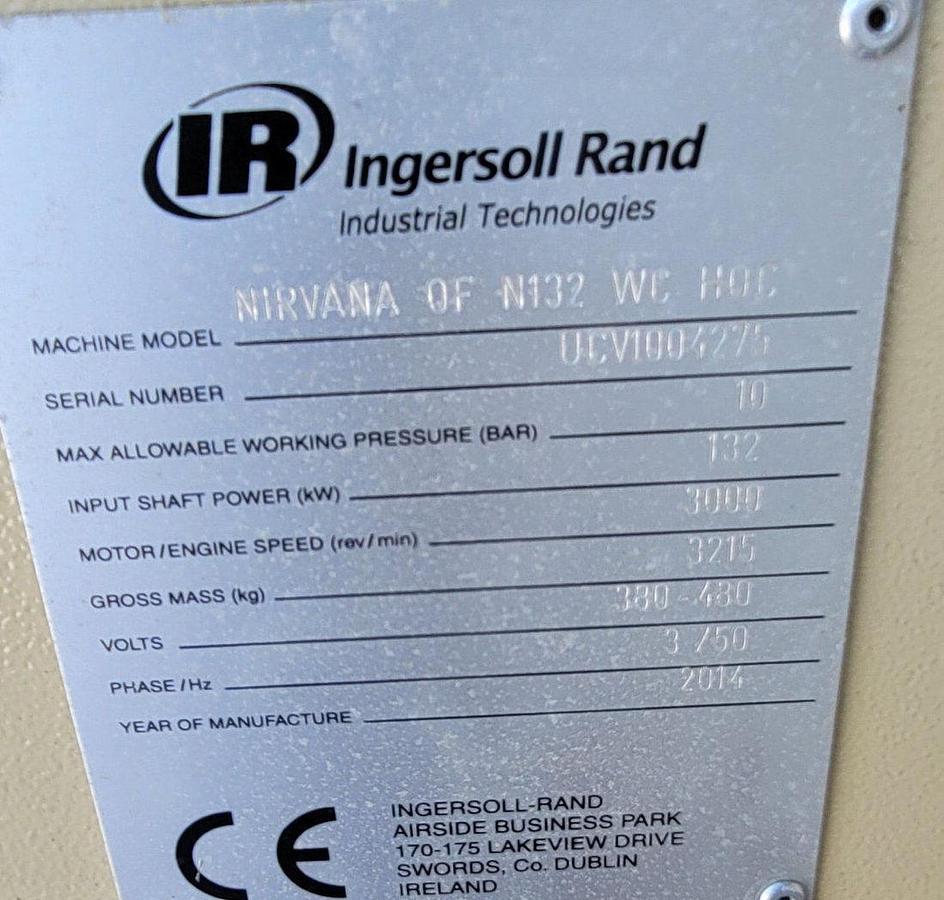

• Weight according to the nameplate: approximately 3,215 kg

• Dimensions: approximately 1,850 × 2,700 × 2,500 mm

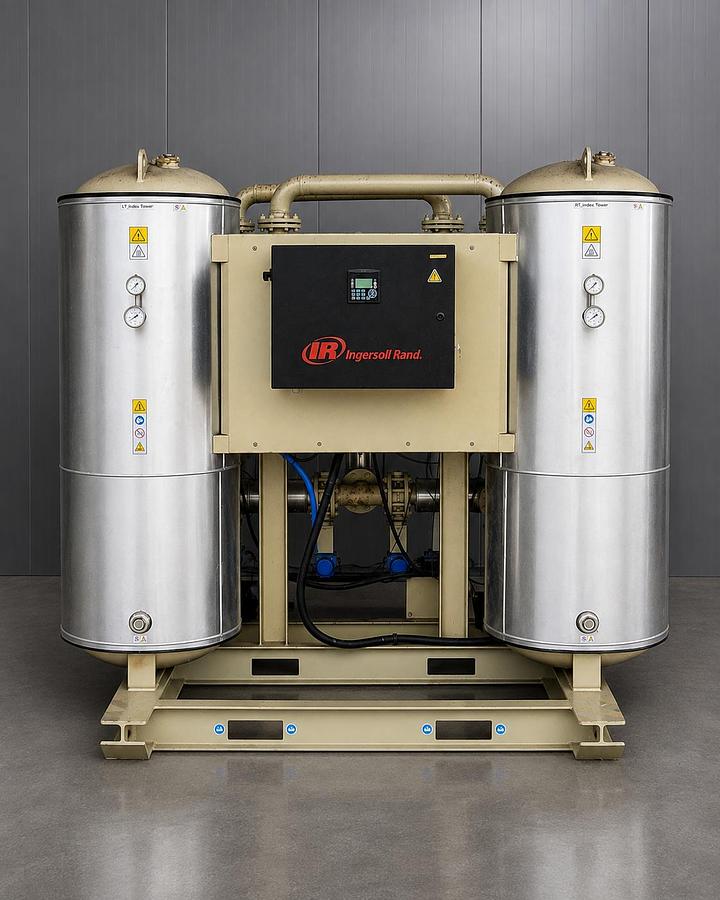

1. Ingersoll Rand D1360 EHS air dryer

• Heat-of-compression desiccant air dryer

• Dual-tower configuration

• Year of manufacture: 2014

• Serial number: 083014

• Maximum airflow: 1,360 m³/h

• Working-pressure range: 5–10 bar

• Design pressure: 12 bar

• Safety-device set pressure: 11 bar

• Desiccant: alumina, approximately 588 kg

• Controller power supply: 230 V / single phase / 50 Hz

• Protection class: IP54

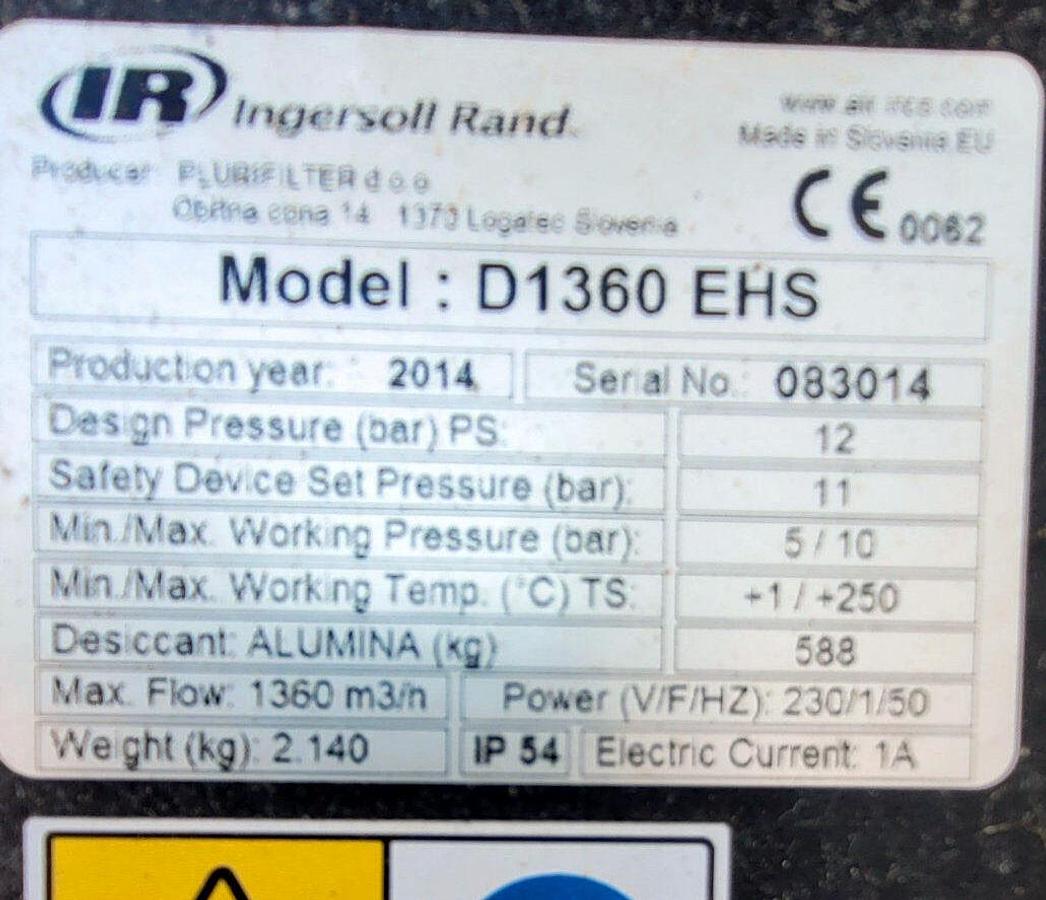

• Weight according to the nameplate: approximately 2,140 kg

• Dimensions: approximately 1,900 × 2,400 × 2,300 mm

The estimated combined transport weight is approximately 6,000 kg.

CONDITION

The system is in used and visually complete condition, as shown in the photographs.

We have not performed a functional test under operating conditions. The current operating condition, running hours, achievable airflow and pressure dew point have therefore not been verified.

The previous service and inspection periods have expired. A technical inspection, maintenance and, if necessary, repair by a qualified compressed-air specialist will be required before recommissioning.

The complete system is therefore offered strictly in its present AS-IS condition.

Visible signs of use, dirt and areas of surface corrosion are documented in the photographs. The sale includes only the components shown in the pictures.

INSPECTION AND TRANSPORT

Inspection before purchase is strongly recommended.

Due to the dimensions and weight, suitable heavy transport and lifting or loading equipment will be required.

Dismantling, loading, professional packing and transport can be arranged by prior agreement. Please contact us before purchase so that the technical and logistical details can be confirmed.

Worldwide shipping is generally possible. Freight costs will be calculated individually according to the destination.

Sale exclusively to companies, professional traders, public institutions or equipment dealers. Supplied without warranty or guarantee to the extent permitted by law.
