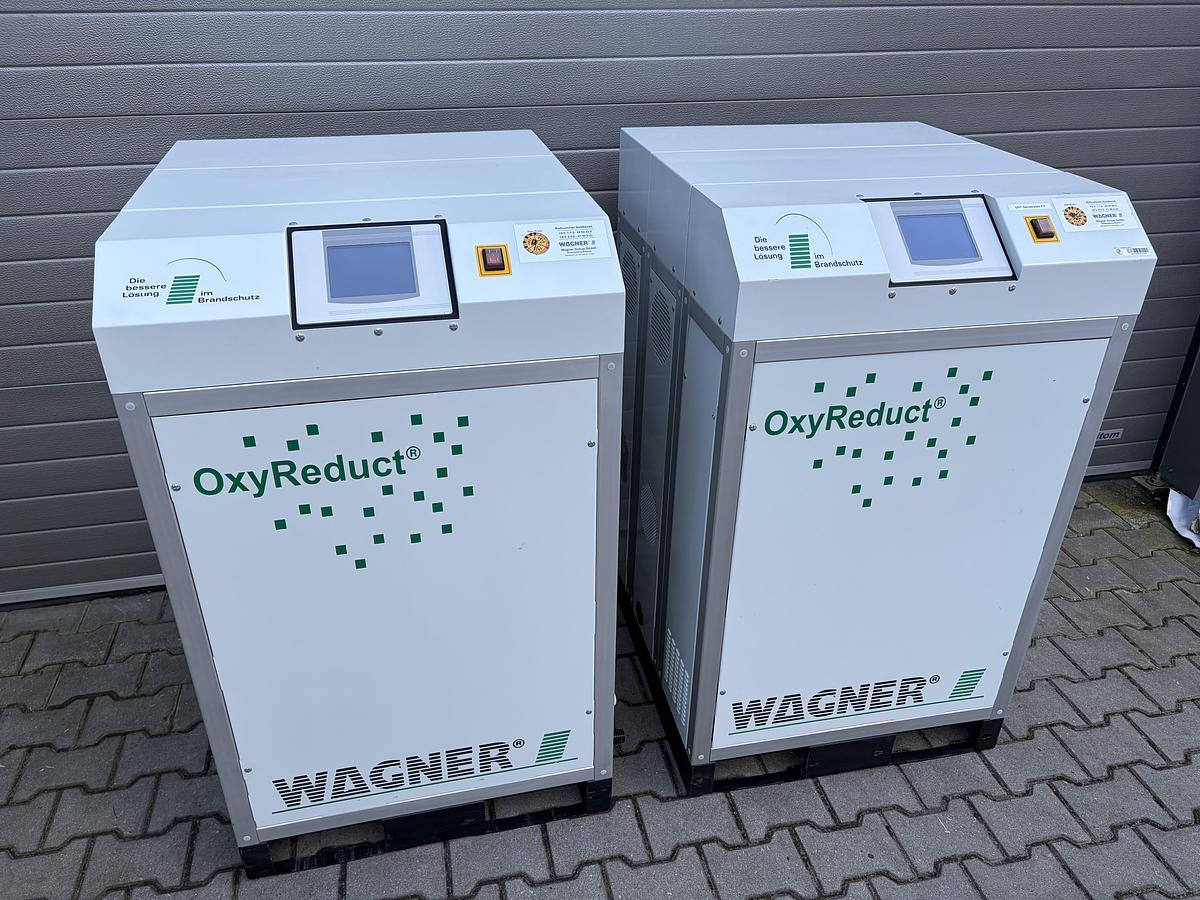

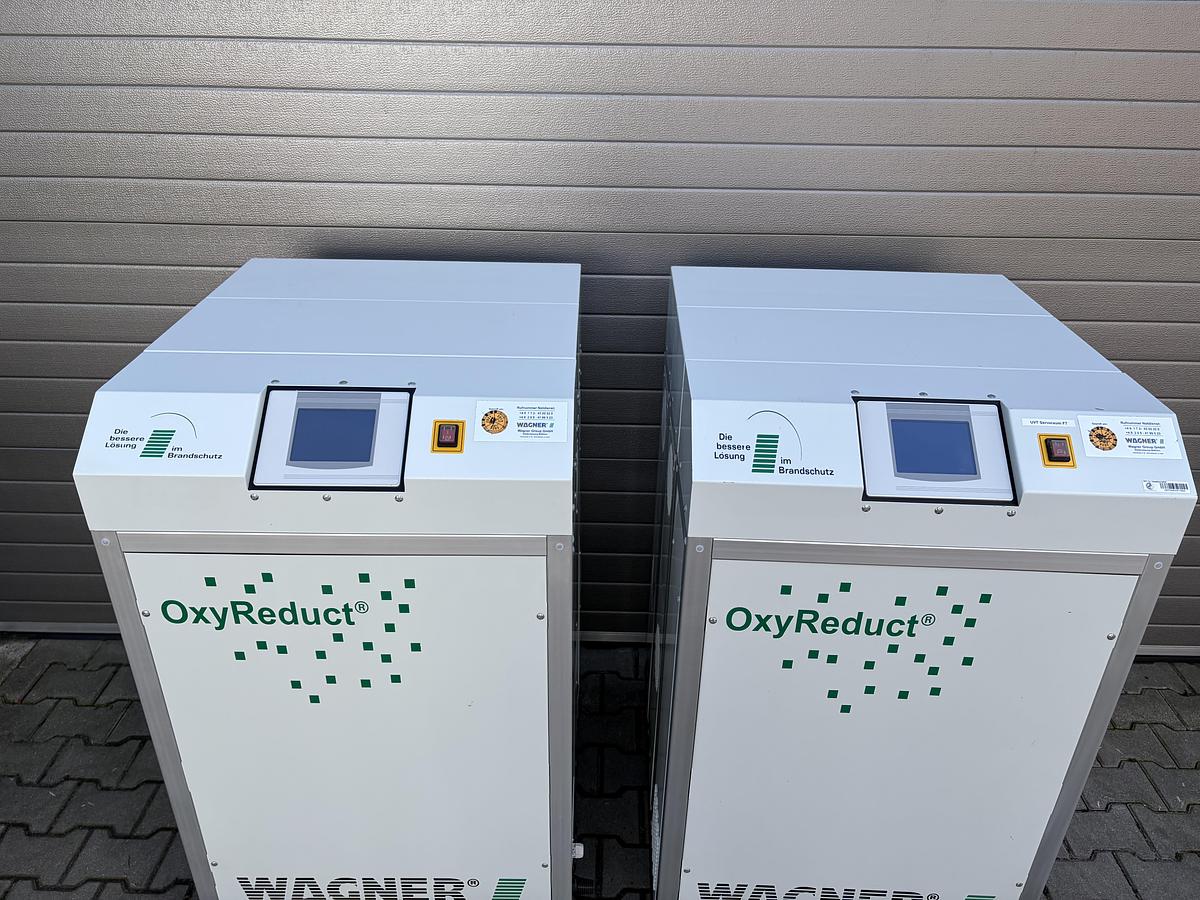

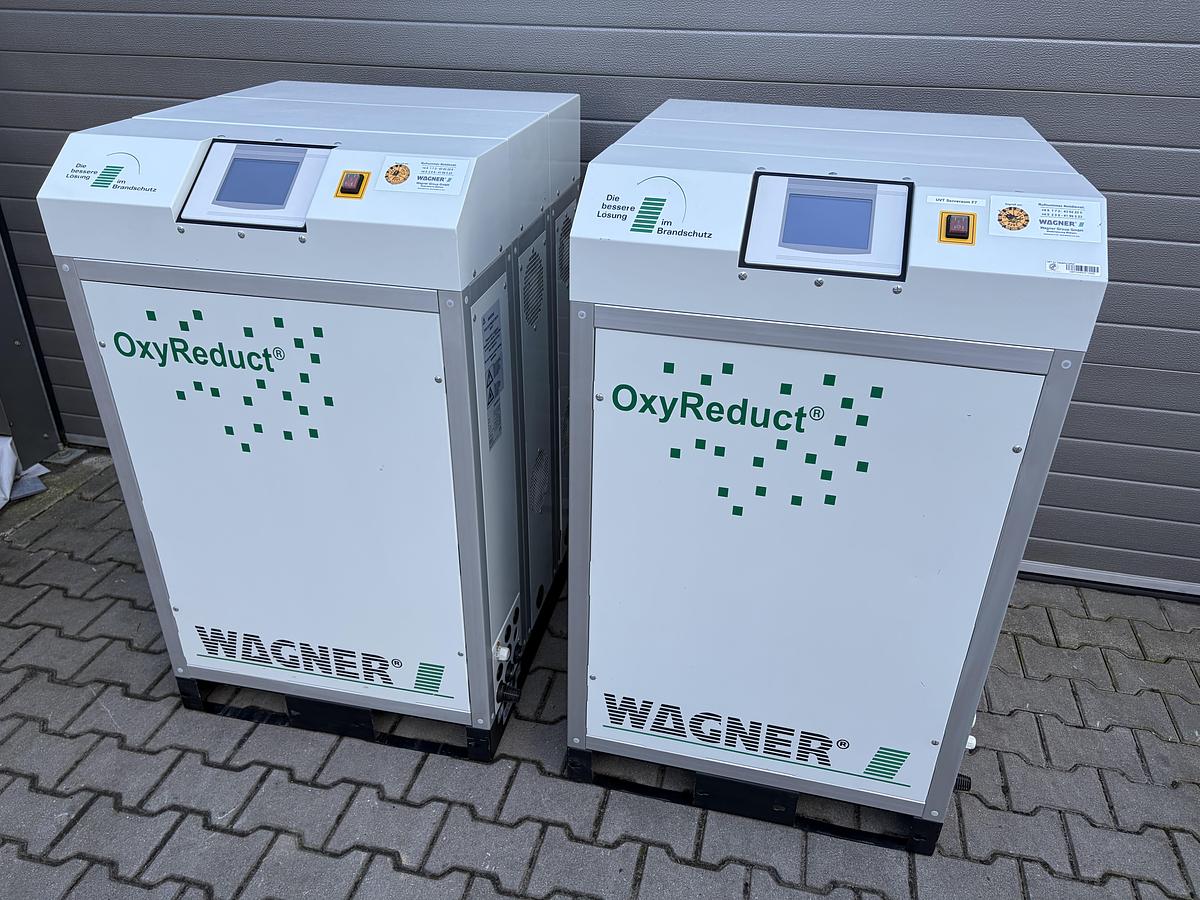

Wagner OxyReduct OxyCompact ORC3 ORC4 Nitrogen Generator System

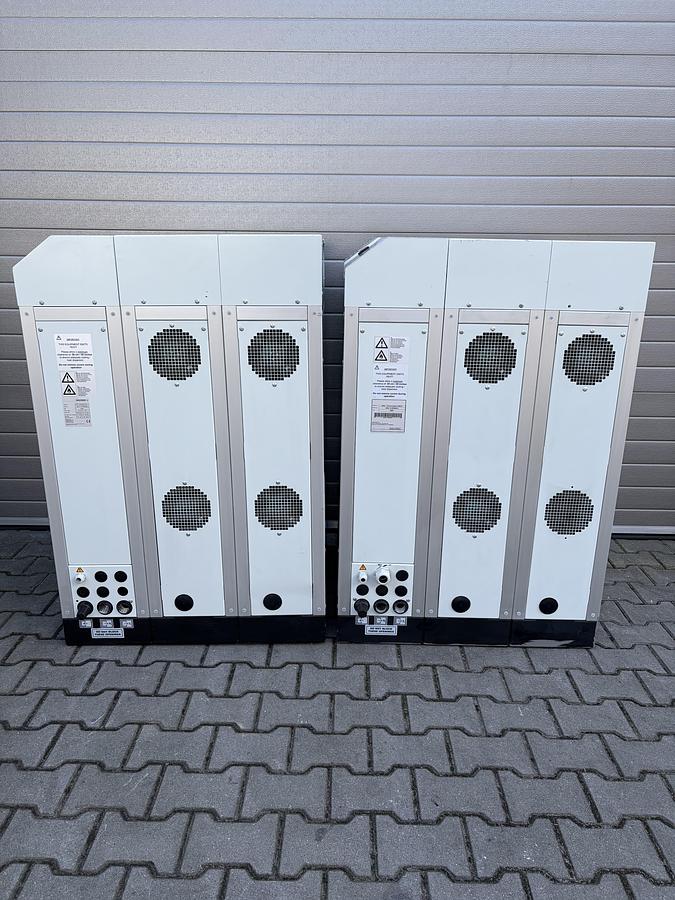

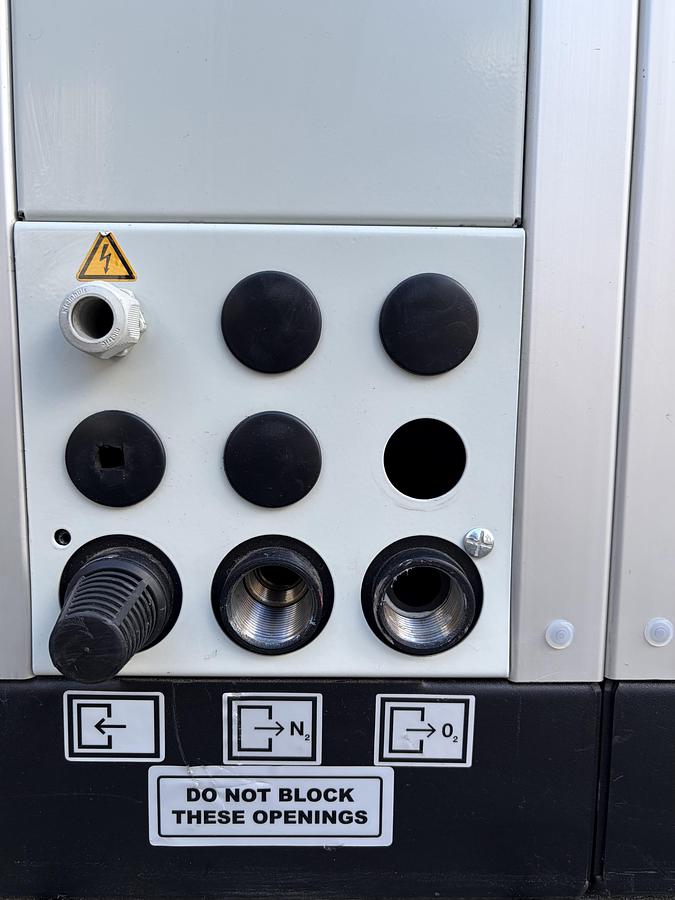

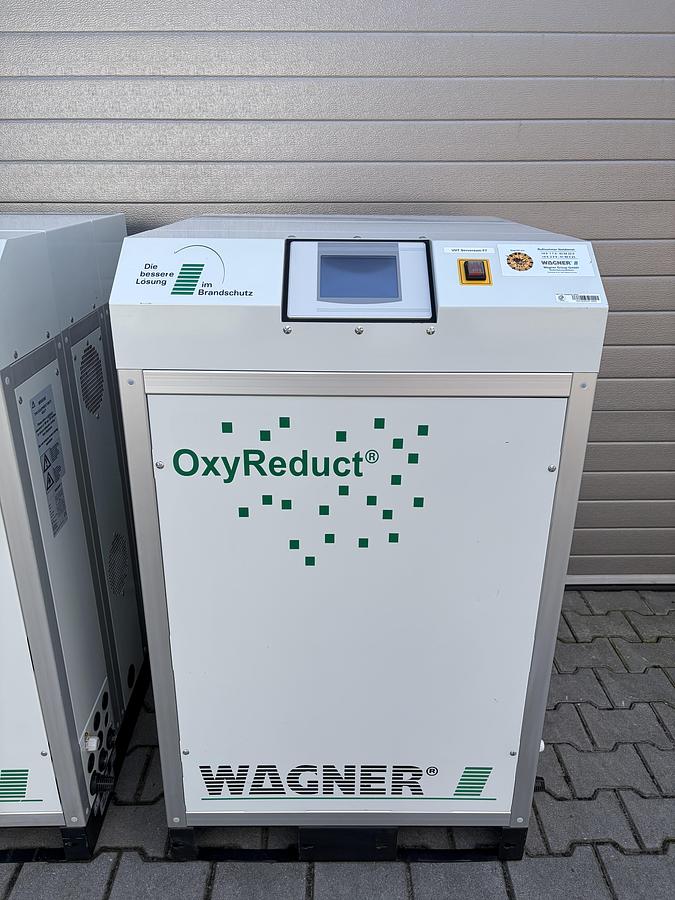

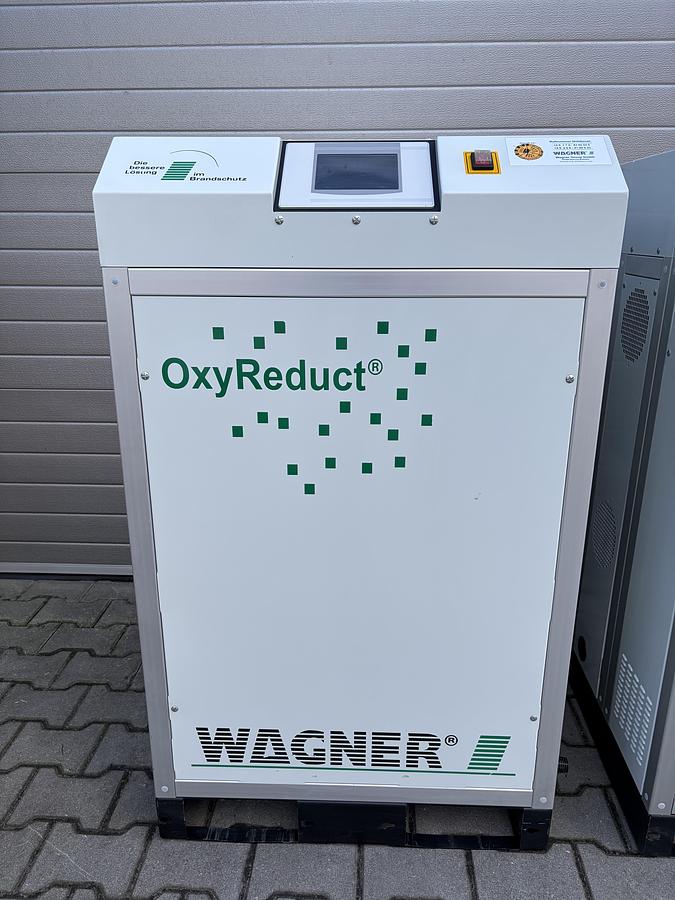

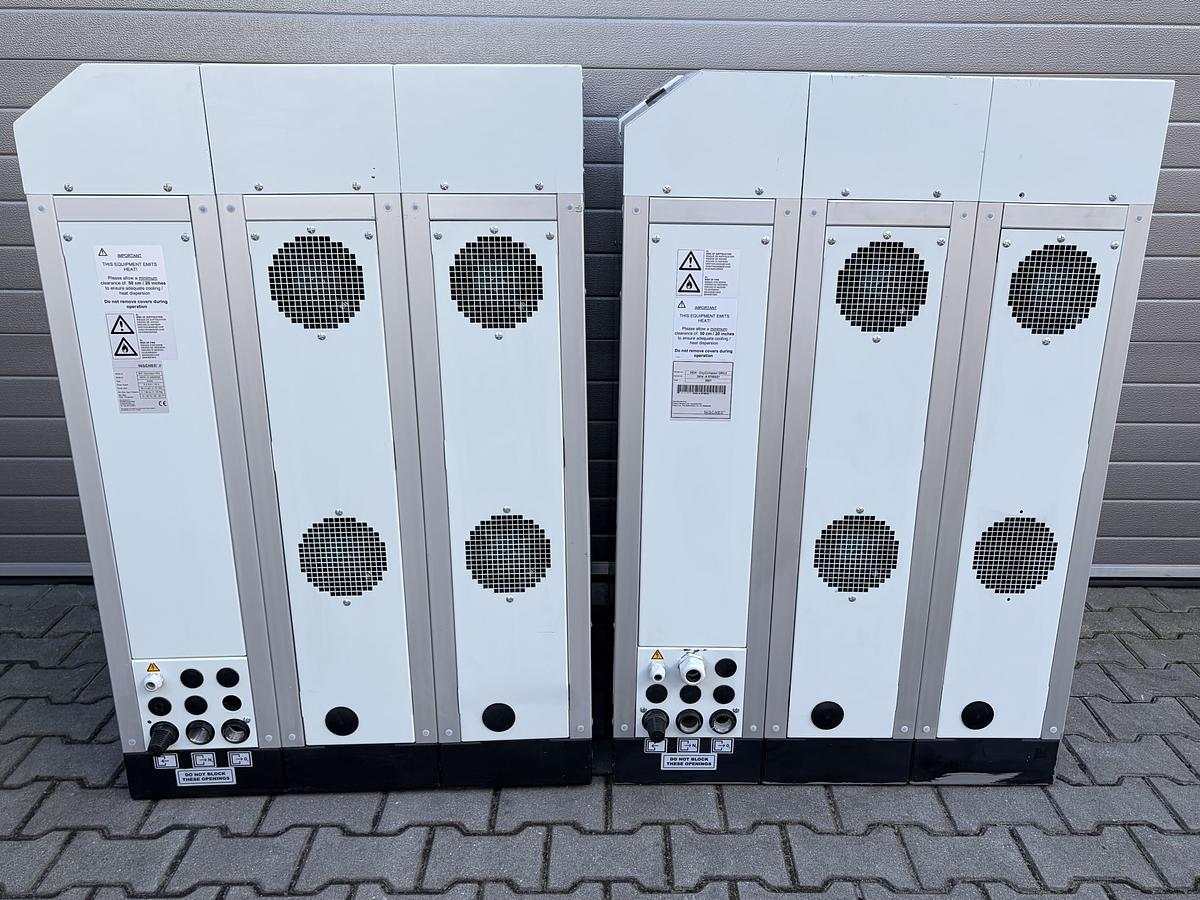

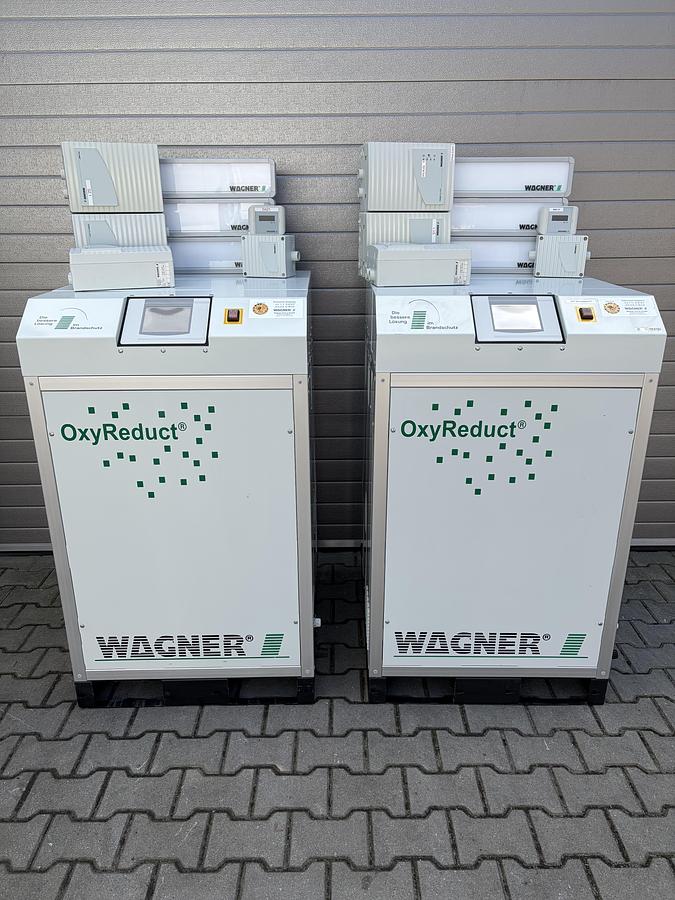

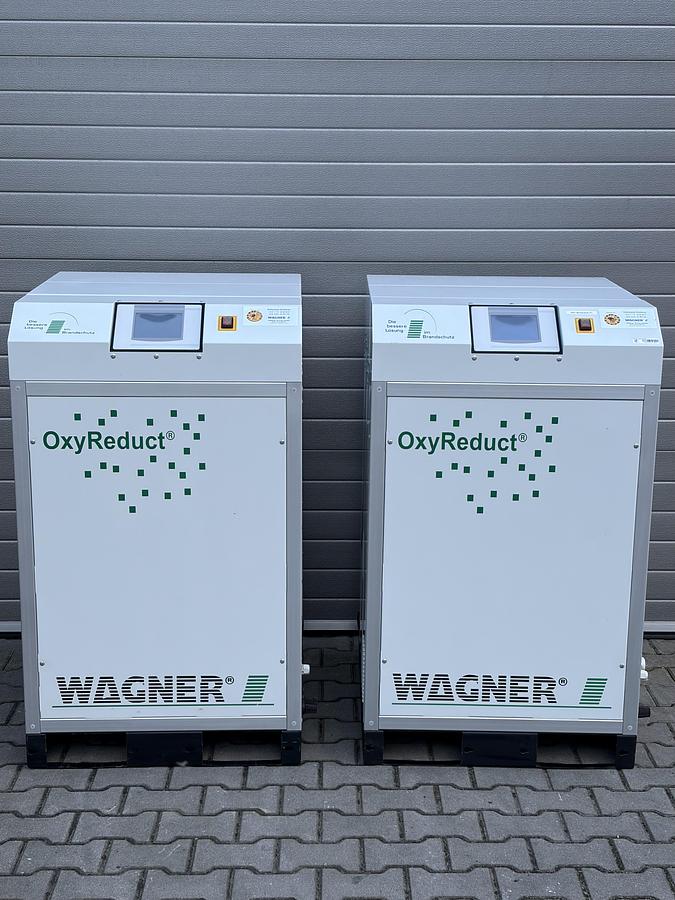

Wagner OxyReduct set consisting of two OxyCompact nitrogen generators, models ORC3 and ORC4, together with the equipment shown in the photos. All items visible in the photos are included.

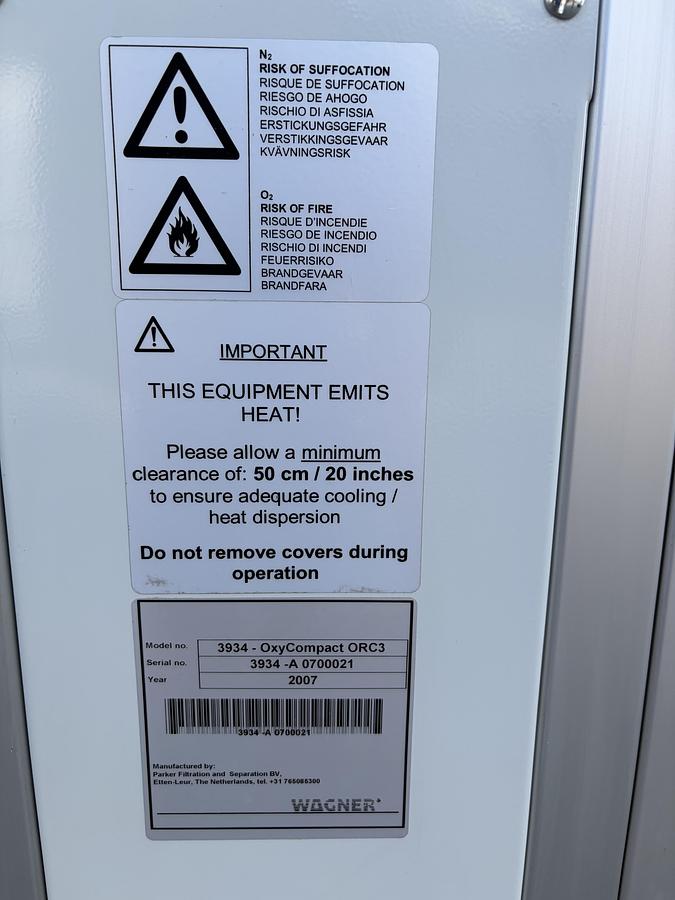

OXYCOMPACT ORC3

Model: 3934 - OxyCompact ORC3

Year of manufacture: 2007

Nitrogen delivery: 10.5 m3/h at 95 vol.%

Nominal power: 4.5 kW

Power supply: 400 V, 50 Hz, three-phase

Dimensions: 725 x 1224 x 810 mm

Weight: 320 kg

OXYCOMPACT ORC4

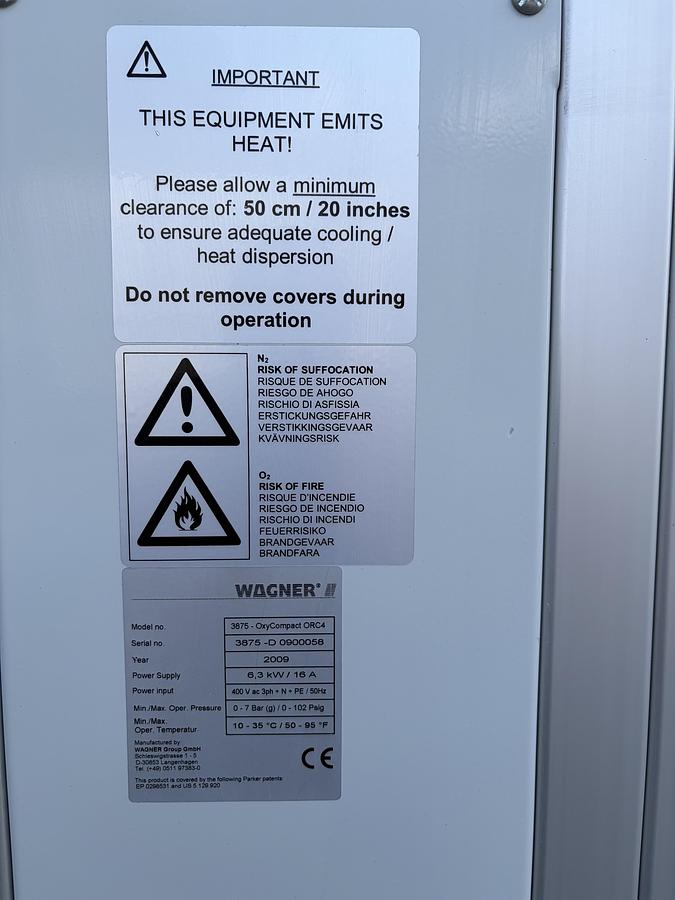

Model: 3875 - OxyCompact ORC4

Year of manufacture: 2009

Nitrogen delivery: 14.0 m3/h at 95 vol.%

Power supply: 400 V AC, 3-phase + N + PE, 50 Hz

Power supply rating according to the nameplate: 6.3 kW / 16 A

Operating pressure range: 0 to 7 bar(g)

Operating temperature range: 10 to 35 degrees C

Dimensions: 725 x 1224 x 810 mm

Weight: 370 kg

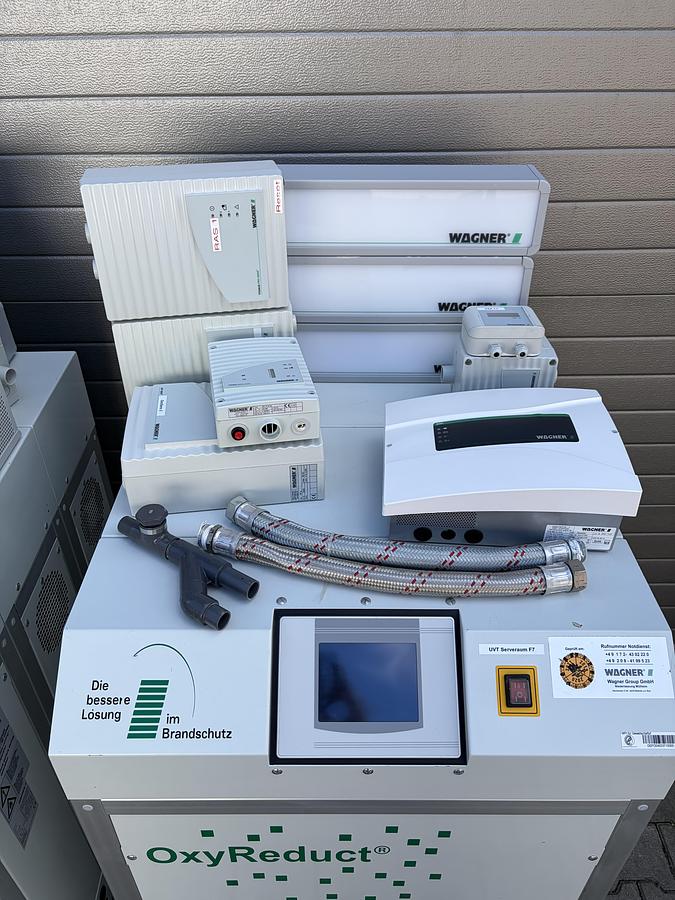

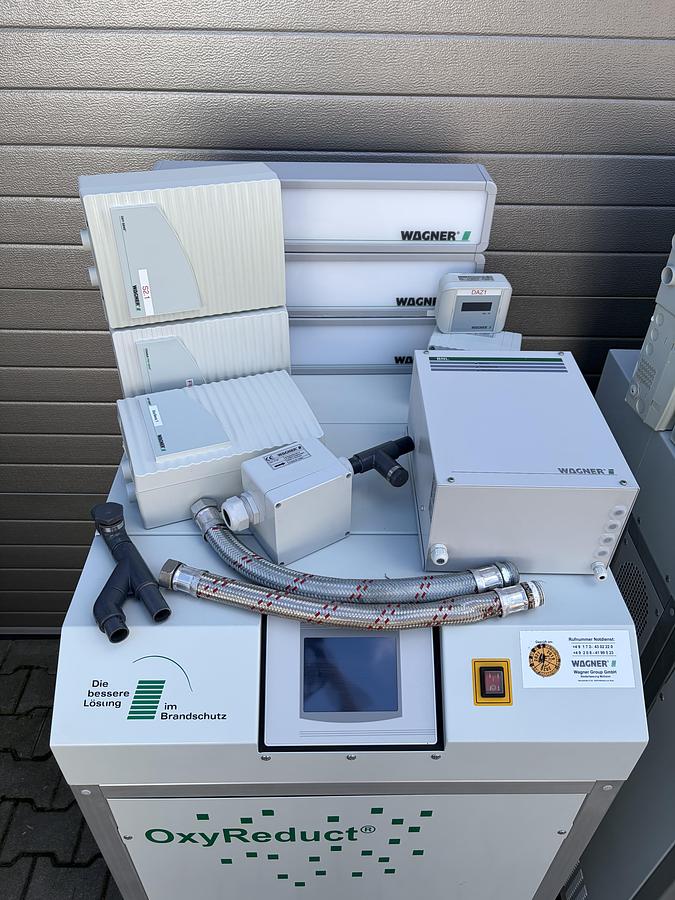

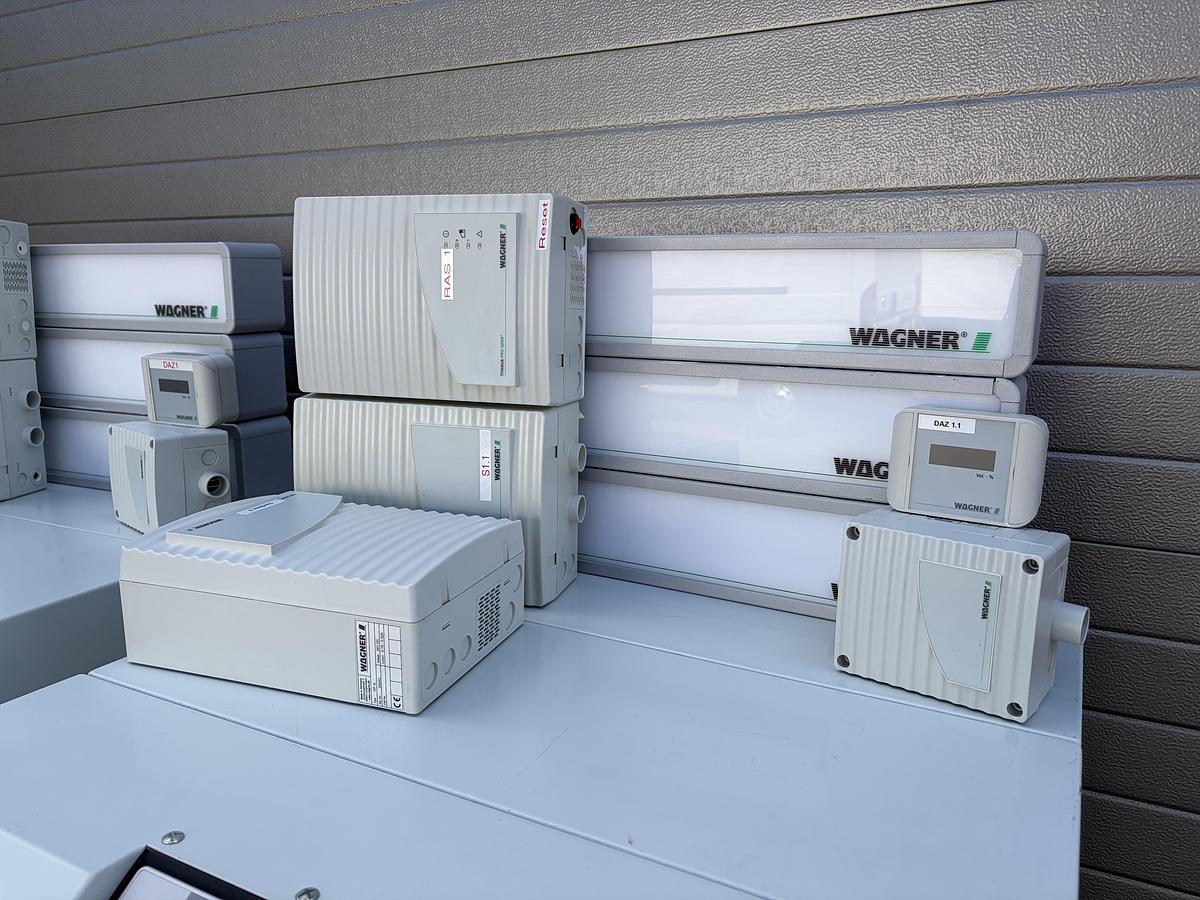

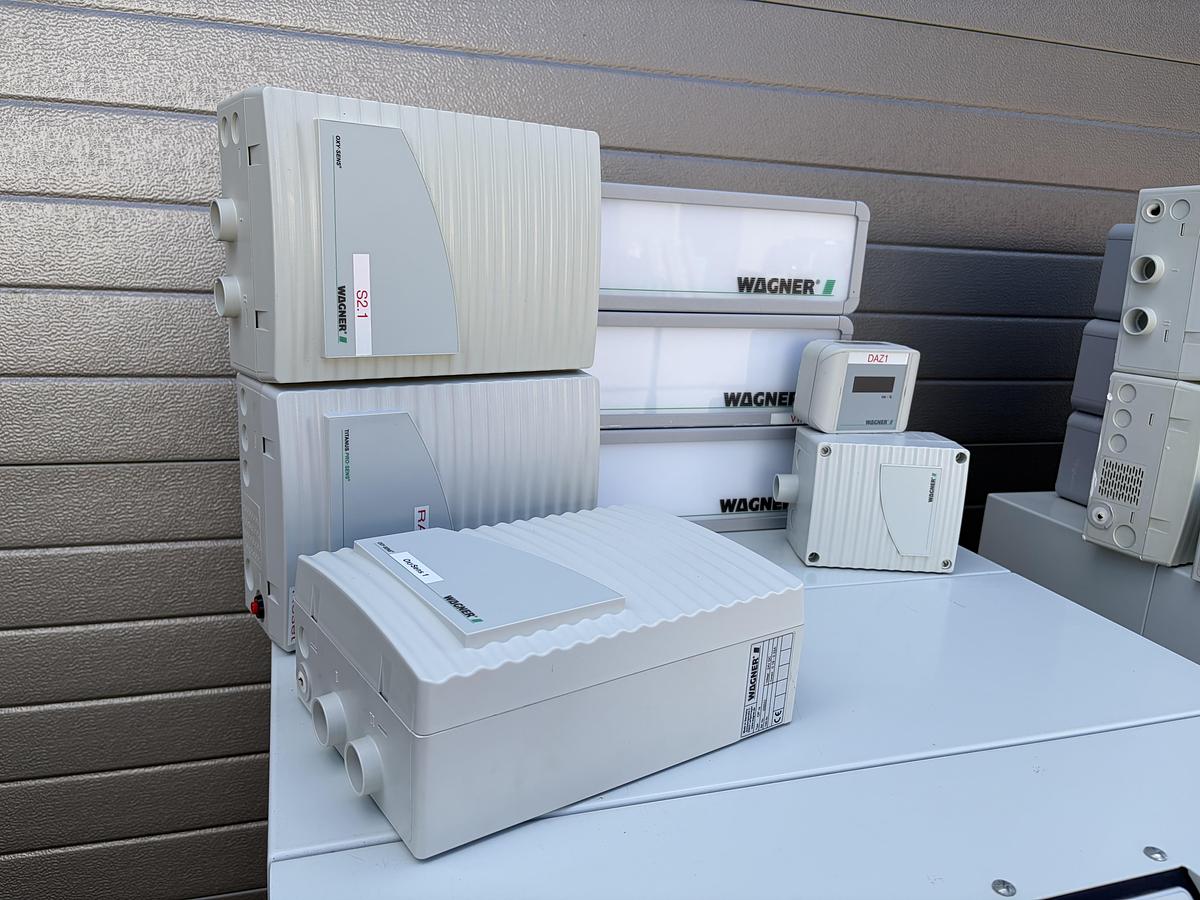

INCLUDED EQUIPMENT

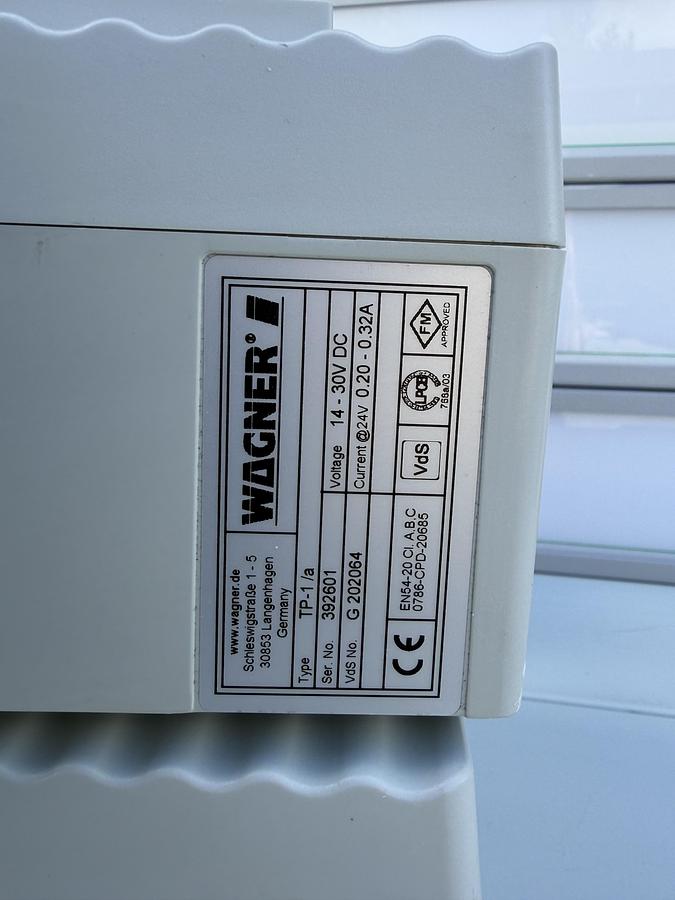

Wagner TITANUS PRO-SENS, type TP-1/a

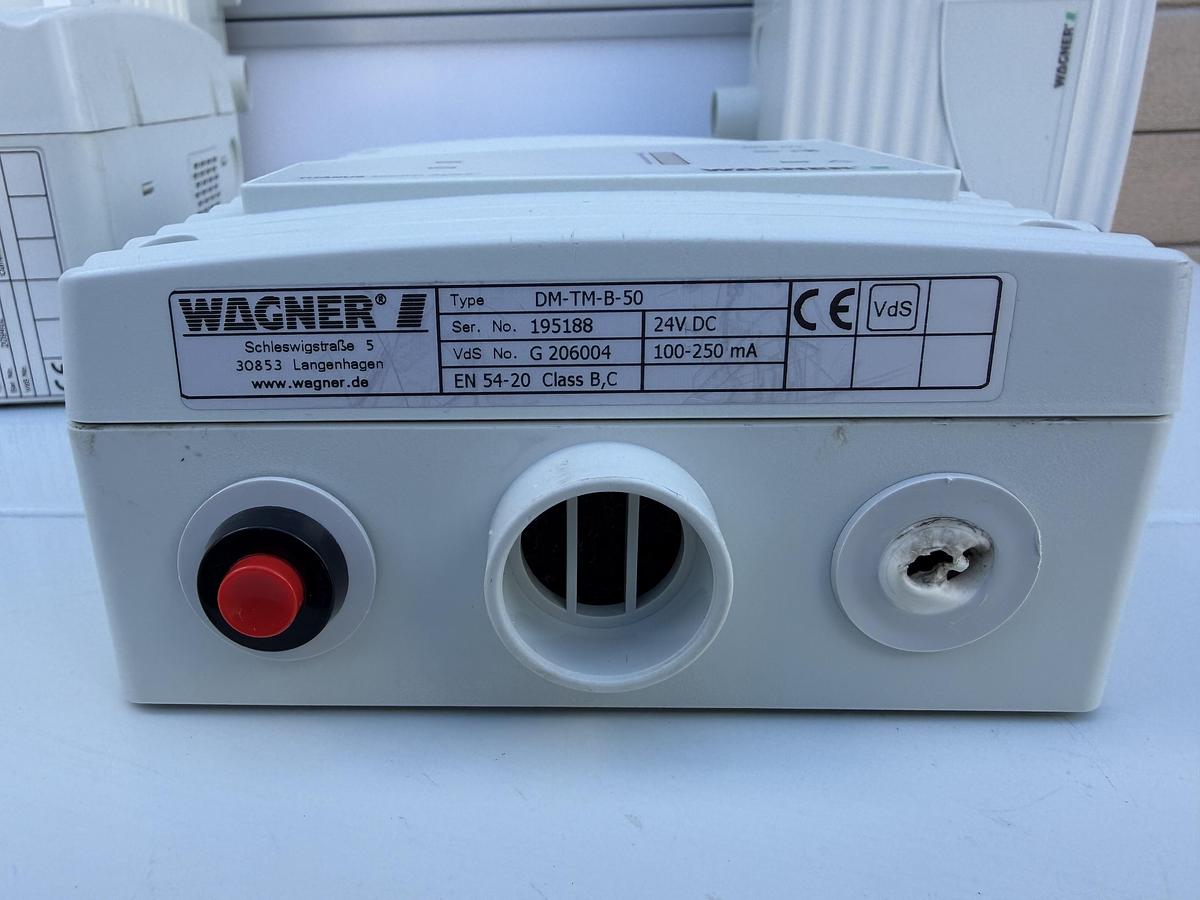

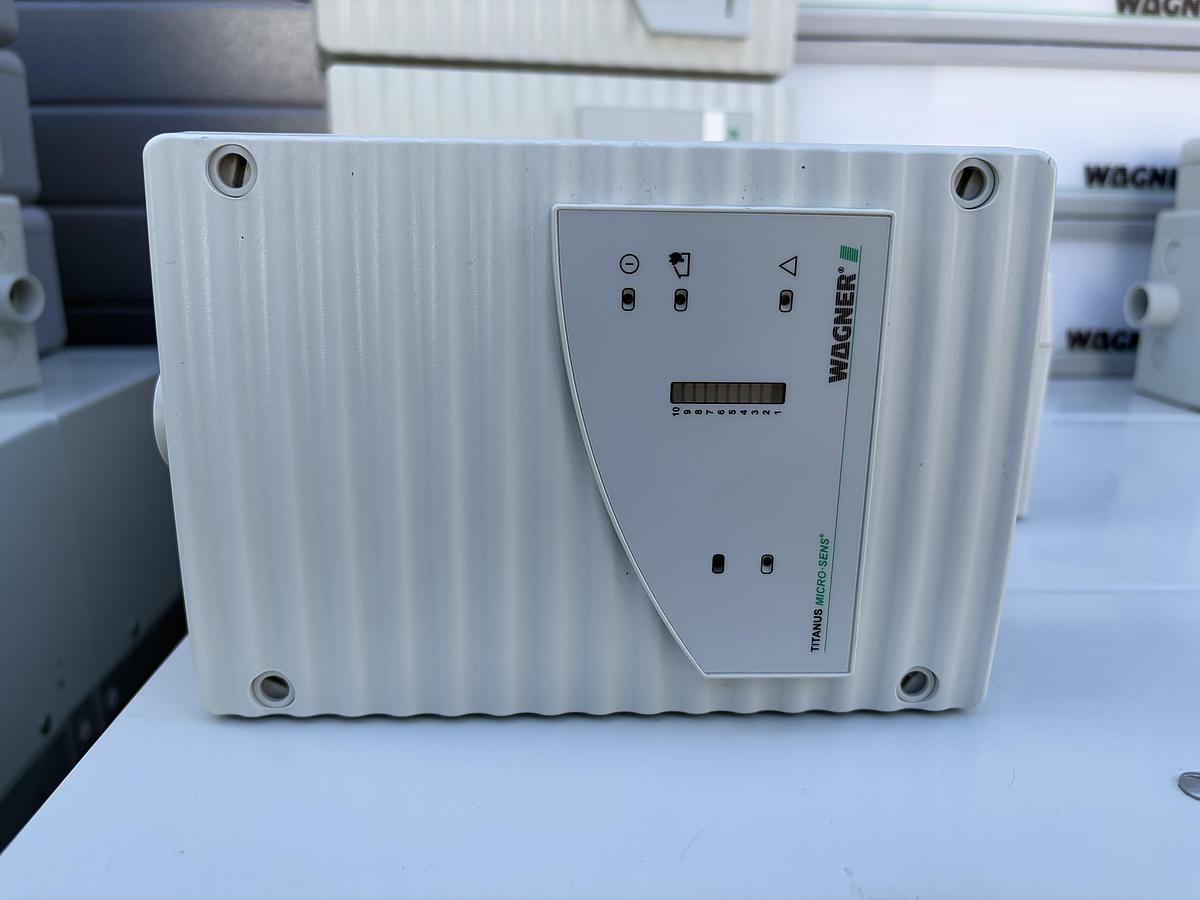

Wagner TITANUS MICRO-SENS, type DM-TM-B-50, 24 V DC

DAZ1 and DAZ1.1 oxygen concentration displays

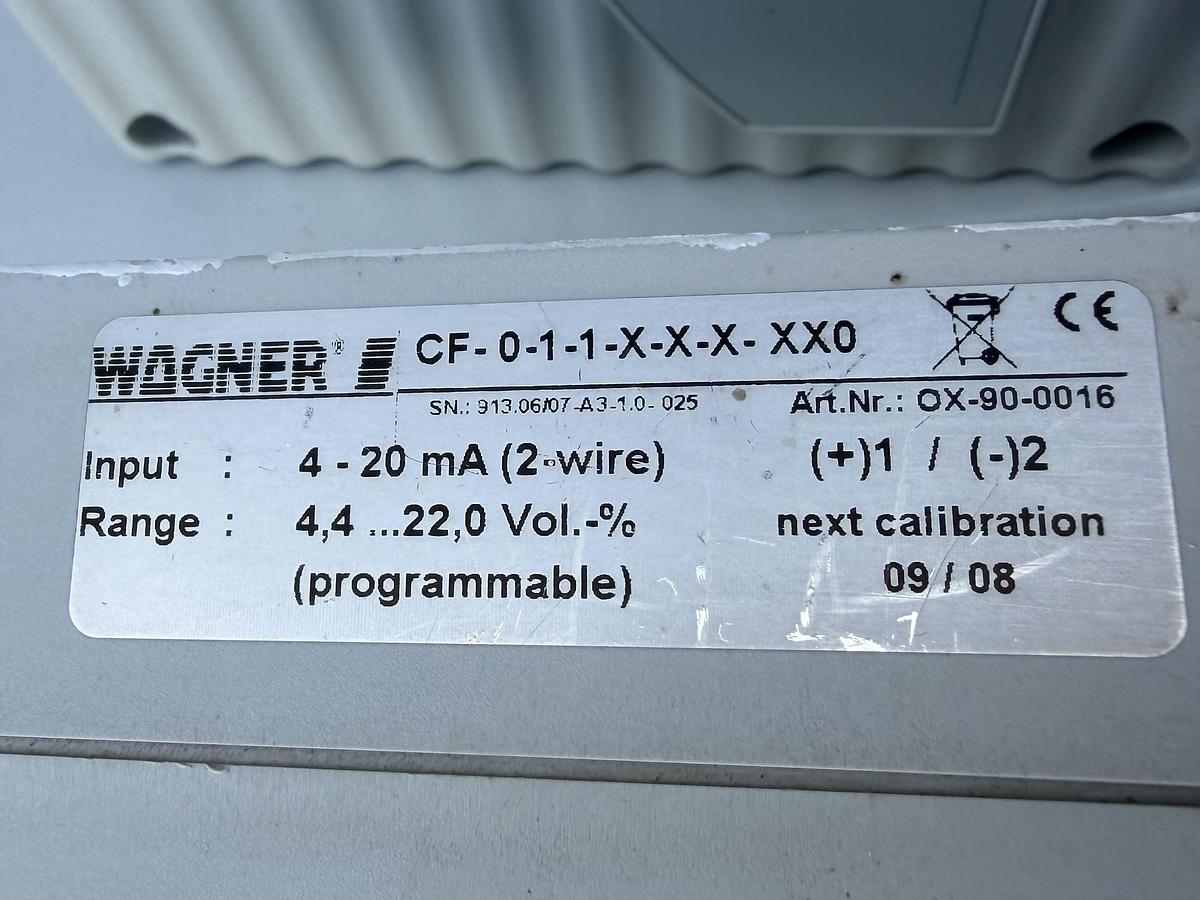

CF-0-1-1-X-X-X-XX0 programmable oxygen concentration transmitter

Transmitter measuring range: 4.4 to 22.0 vol.%

Transmitter output signal: 4 to 20 mA

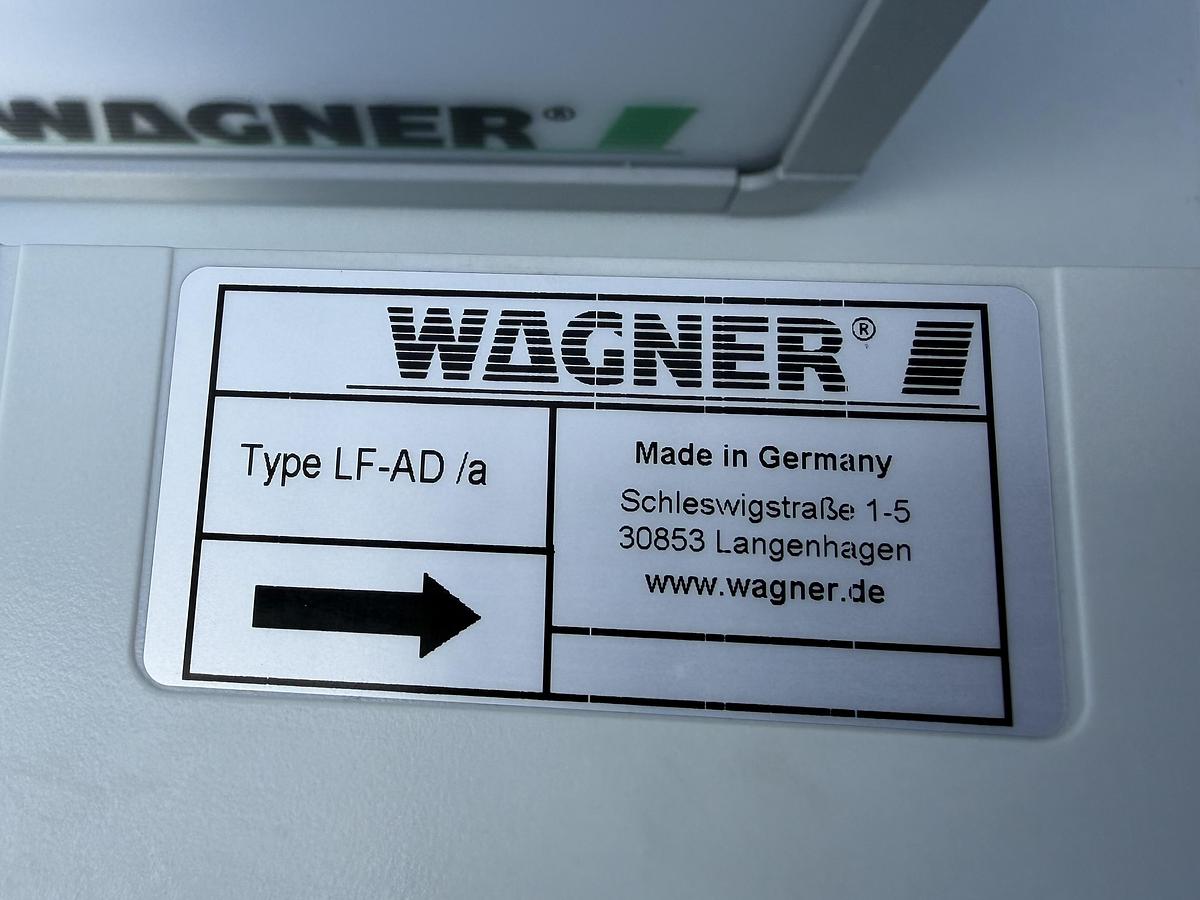

Wagner LF-AD/a air filter

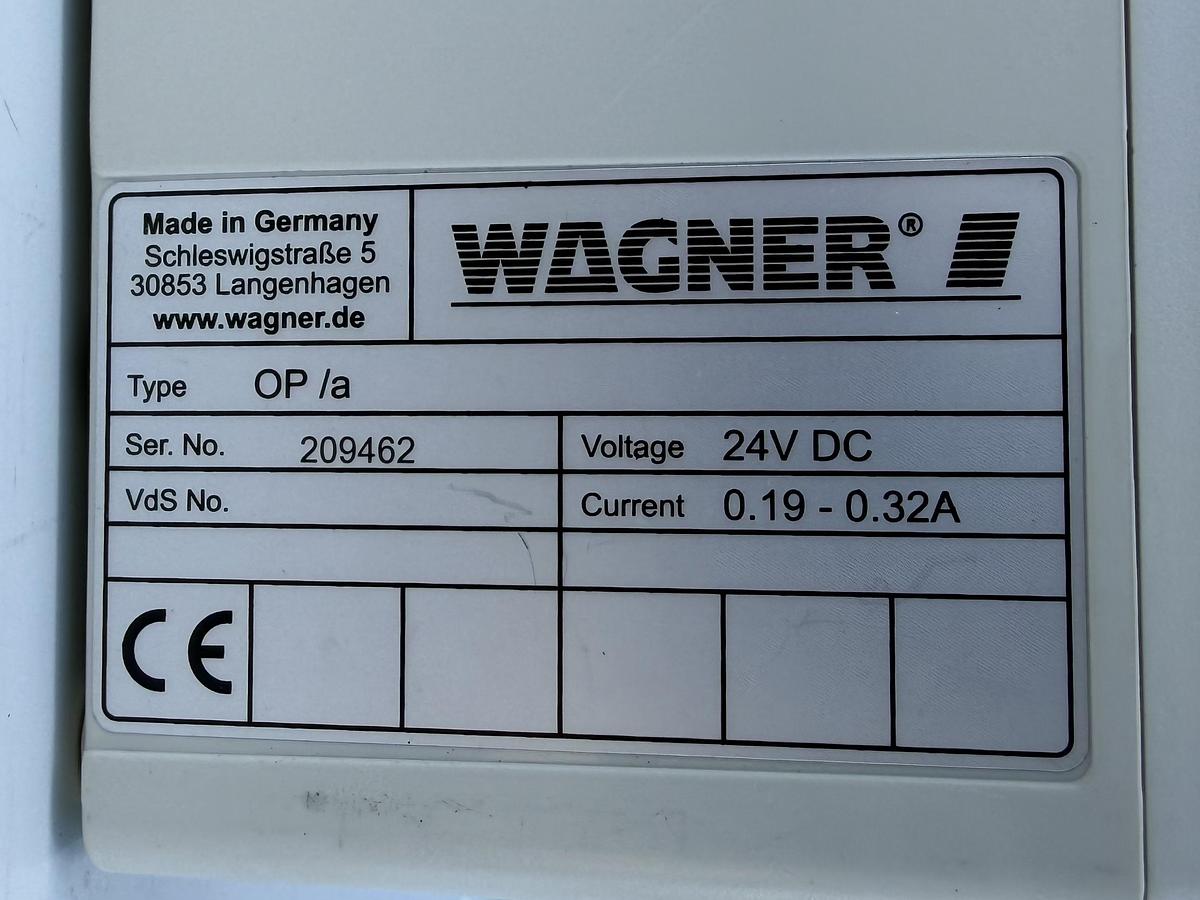

Wagner OP/a module, 24 V DC, 0.19 to 0.32 A

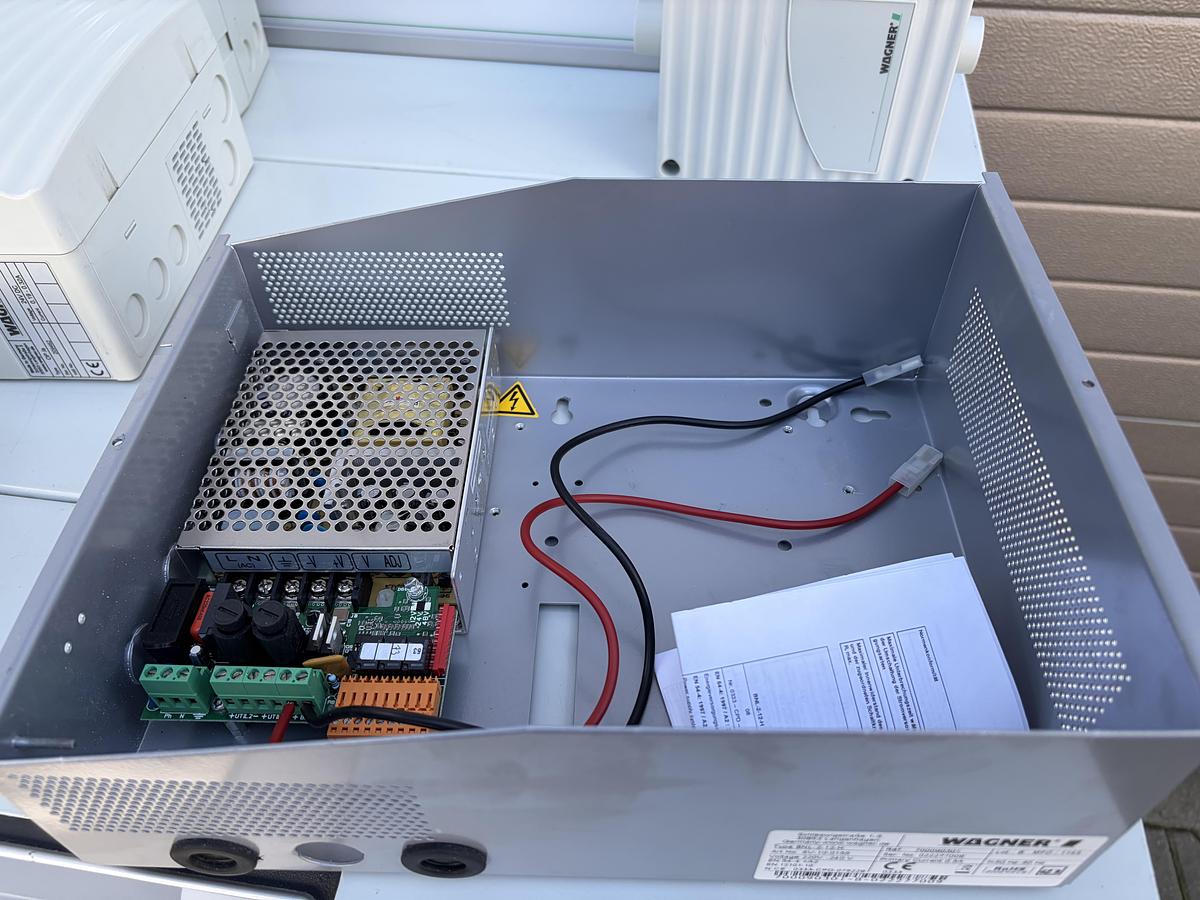

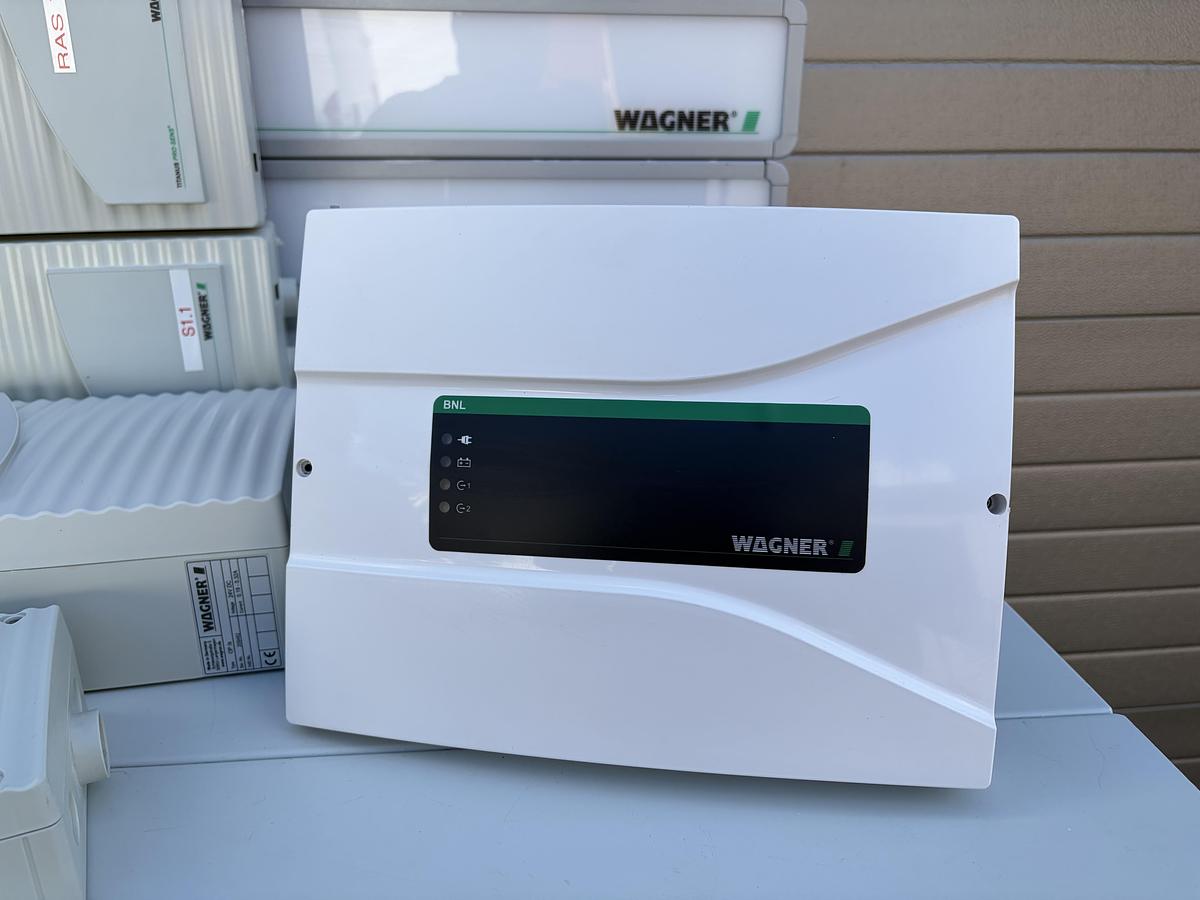

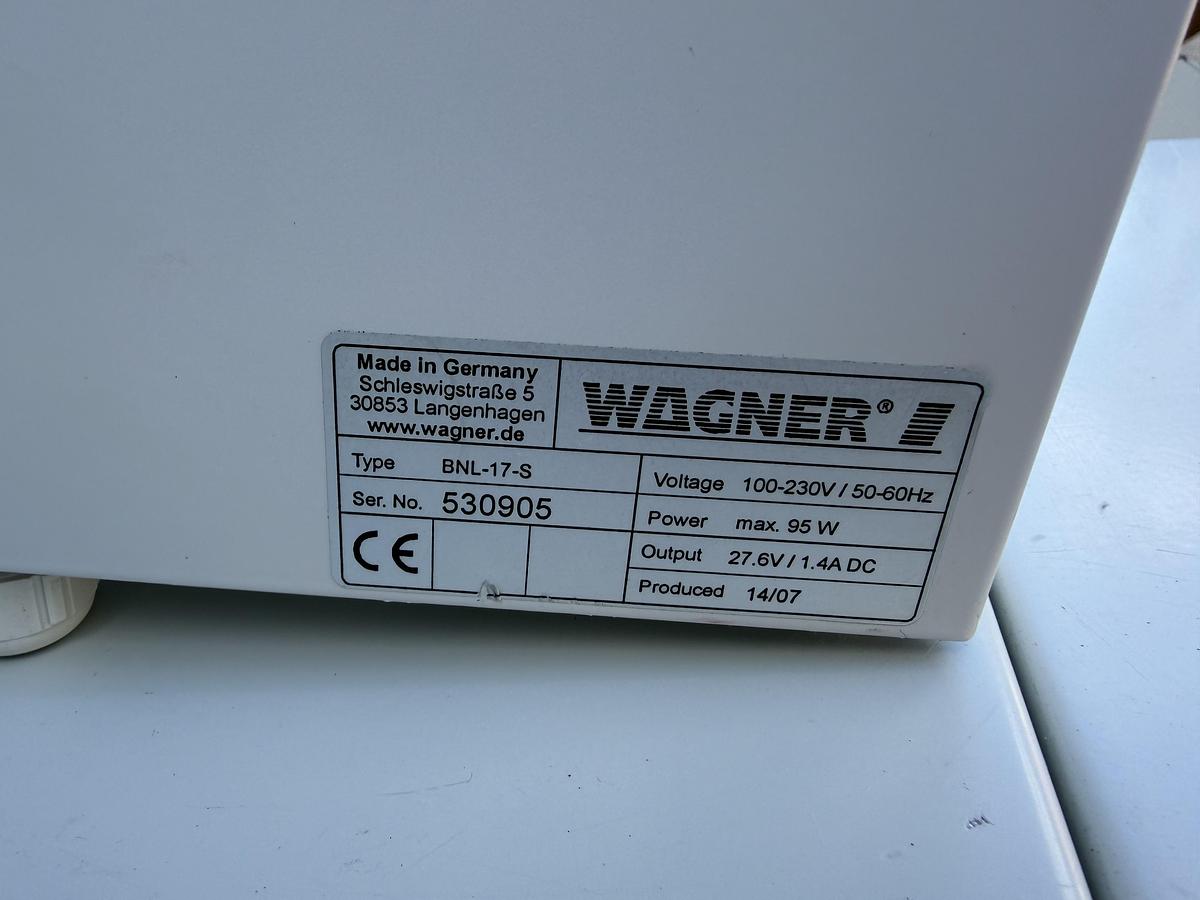

Wagner BNL-17-S power supply

BNL-17-S input: 100 to 230 V, 50 to 60 Hz

BNL-17-S output: 27.6 V / 1.4 A DC

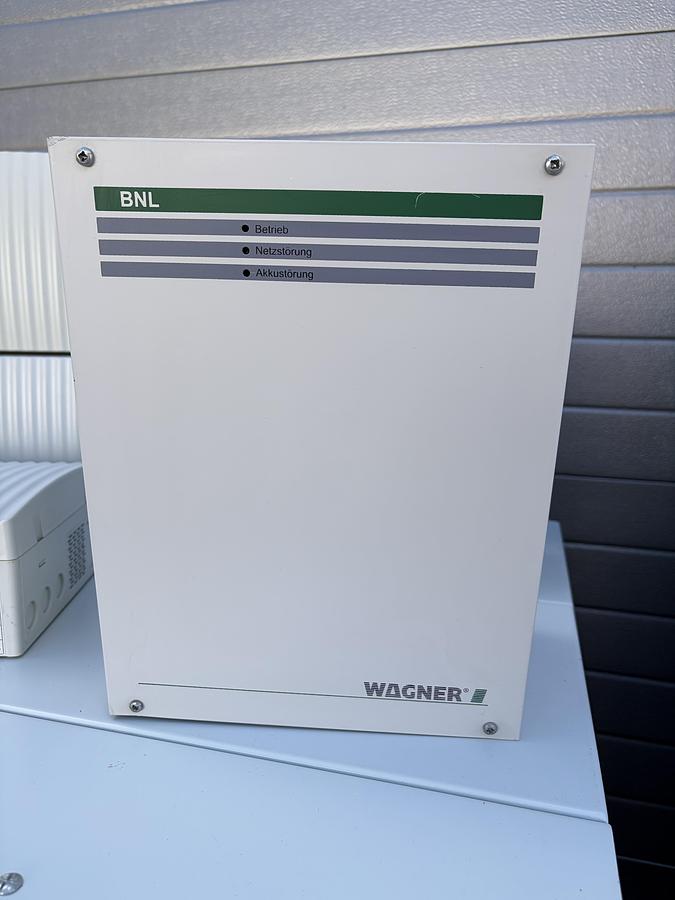

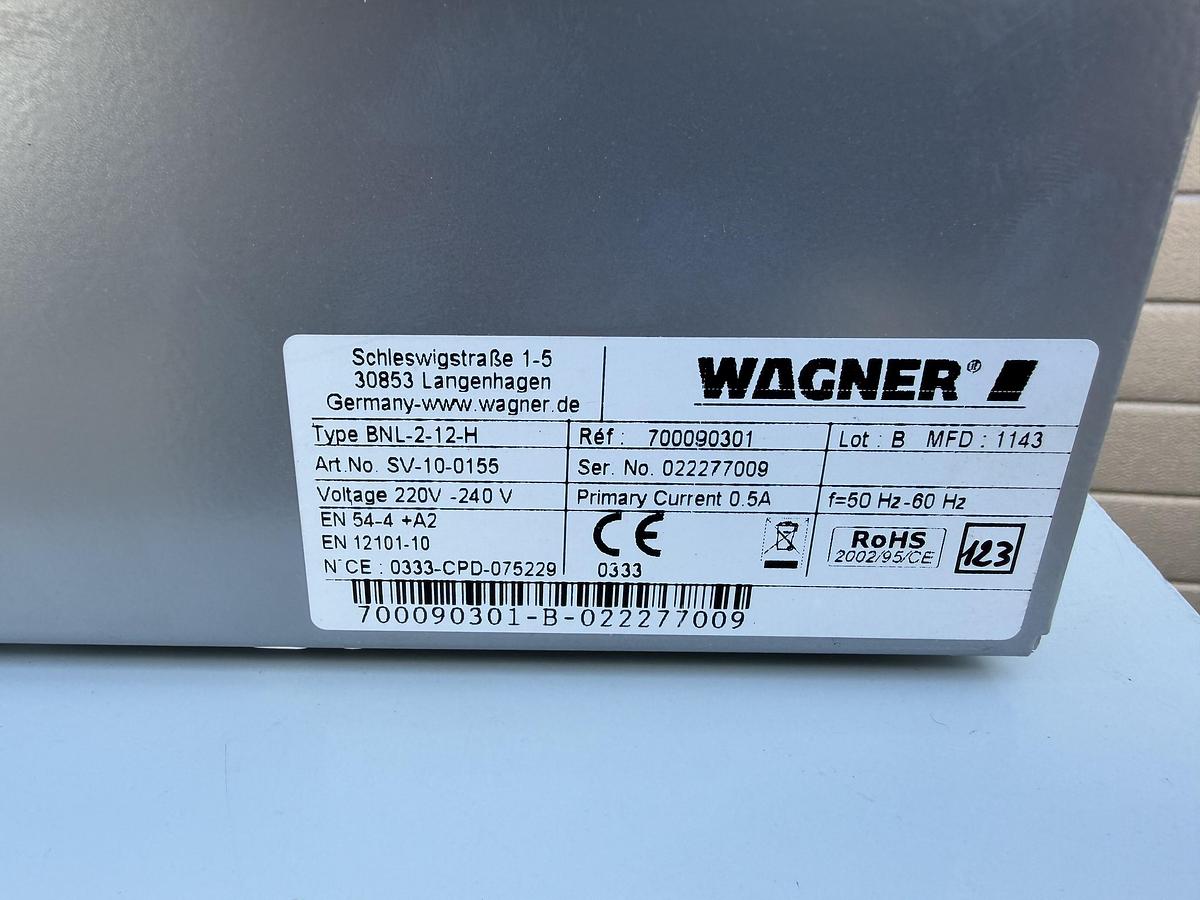

Wagner BNL-2-12-H emergency power supply

BNL-2-12-H input: 220 to 240 V, 50 to 60 Hz

Six Wagner illuminated panels

Flexible hoses, pipe fittings and other components visible in the photos

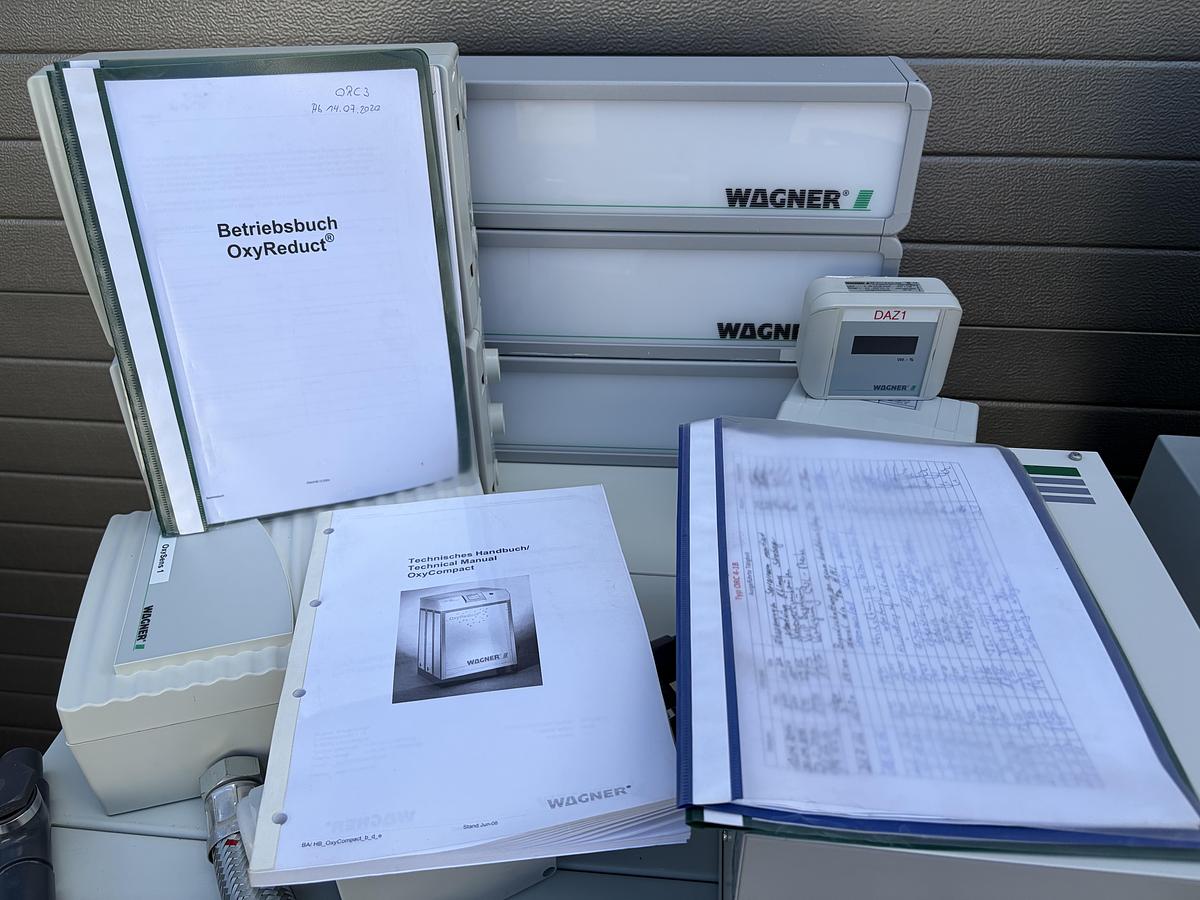

Documentation

Both Wagner BNL-17-S and BNL-2-12-H power supply units are supplied without batteries.

The system was removed from a fully operational installation. All items visible in the photos are included in the sale.
