Leybold EcoDry M15 Oil-Free Dry Vacuum Pump – 230 V – 15 m³/h

Leybold EcoDry M15 Oil-Free Dry Vacuum Pump – 230 V – 15 m³/h

For sale is a Leybold Vacuum EcoDry M15 dry vacuum pump, European 230 V single-phase version.

The EcoDry M15 is a dry-compressing, oil-free three-stage piston vacuum pump designed for laboratory, research, analytical and high-vacuum backing applications.

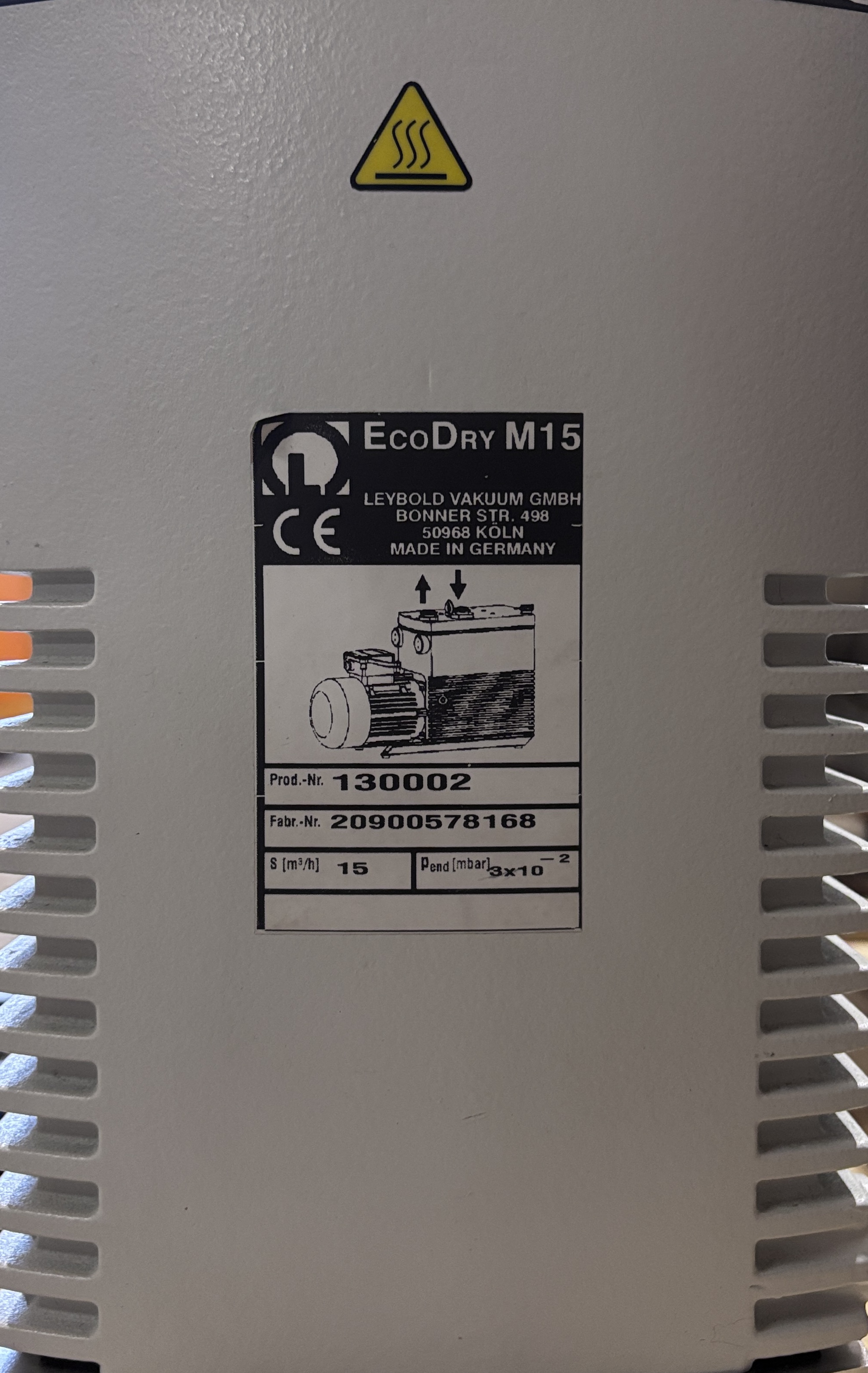

Unit information

Manufacturer: Leybold Vacuum GmbH

Model: EcoDry M15

Product No.: 130002

Serial / Fabr. No.: 20900578168

Version: 230 V / single phase / 50–60 Hz

Made in Germany

Technical specifications

• dry-compression piston vacuum pump
• oil-free gas path
• 3 cylinders
• 3 compression stages
• pumping speed according to nameplate: 15 m³/h
• pumping speed at 50 Hz: approx. 14 m³/h
• pumping speed at 60 Hz: approx. 16 m³/h
• ultimate pressure at 50 Hz: 3 × 10⁻² mbar
• ultimate pressure at 60 Hz: 2 × 10⁻² mbar
• inlet: DN25 KF
• exhaust: DN25 KF
• mains voltage: 220–240 V
• single phase
• 50/60 Hz
• weight approx. 50 kg

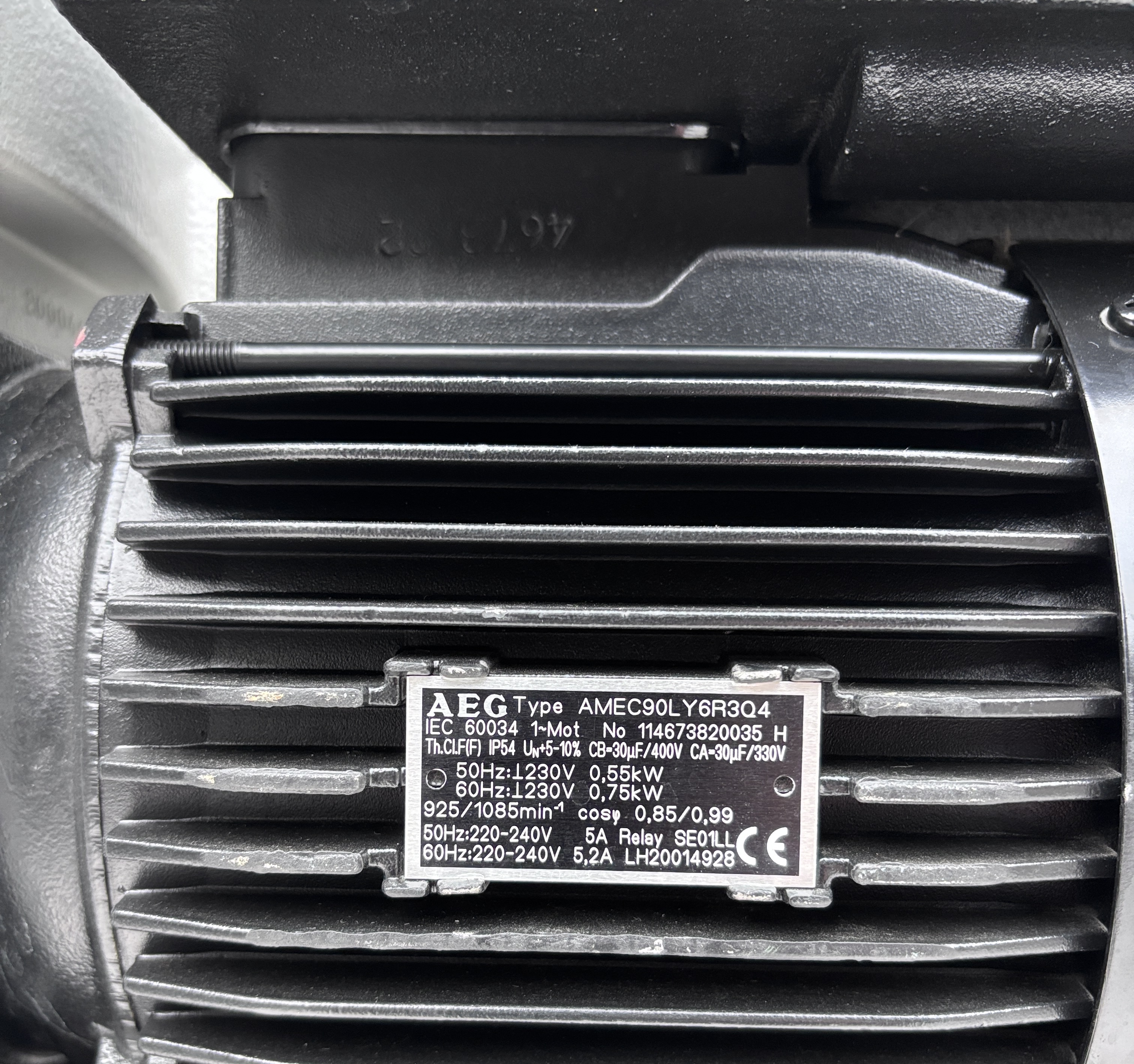

Motor

Manufacturer: AEG

Type: AMEC90LY6R304

• 230 V
• 50 Hz: 0.55 kW
• 60 Hz: 0.75 kW
• protection class: IP54

This is the convenient European single-phase version and can be connected directly to a suitable mains supply without an external frequency converter or pump controller.

Condition

Used condition with normal signs of previous use and age.

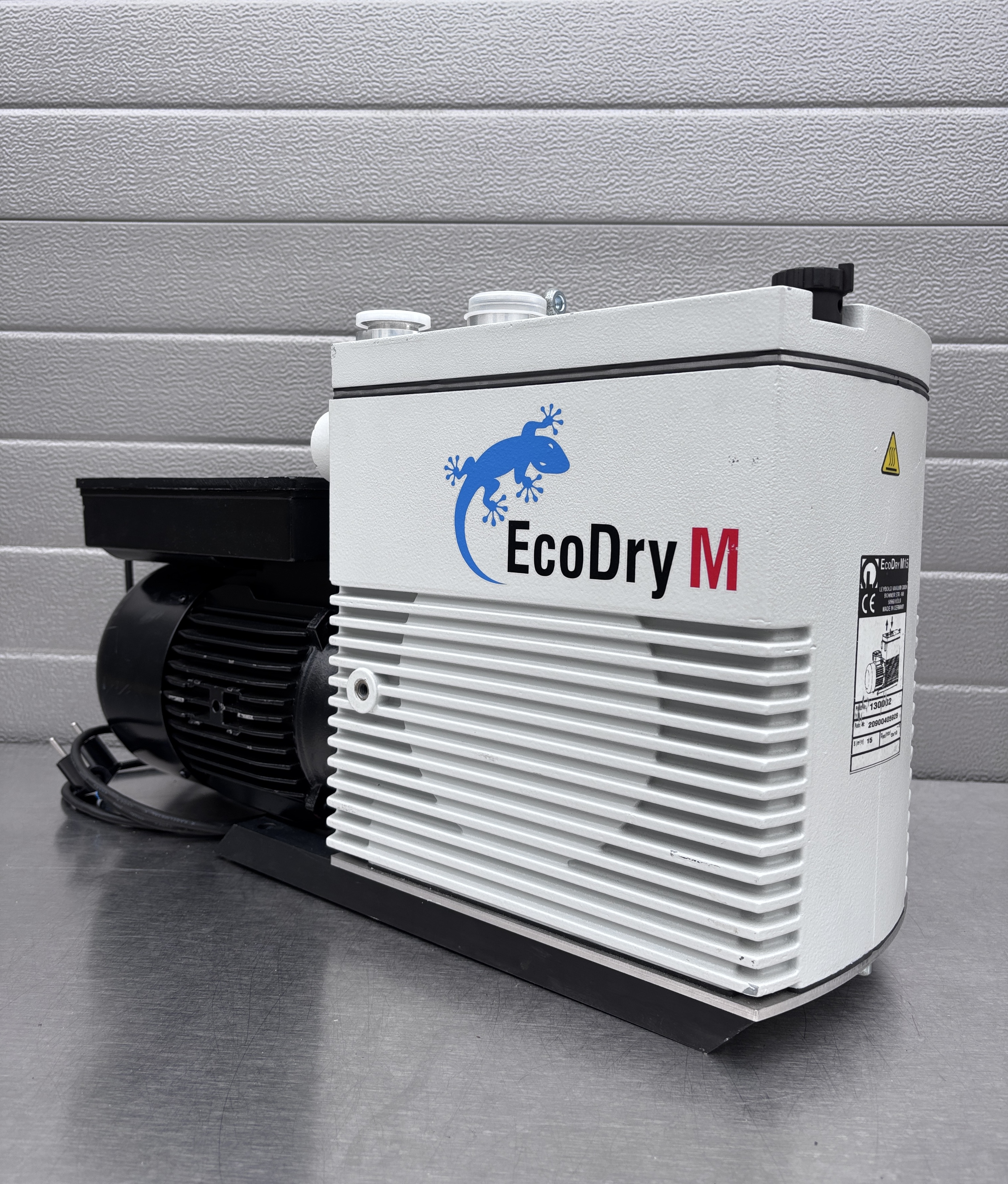

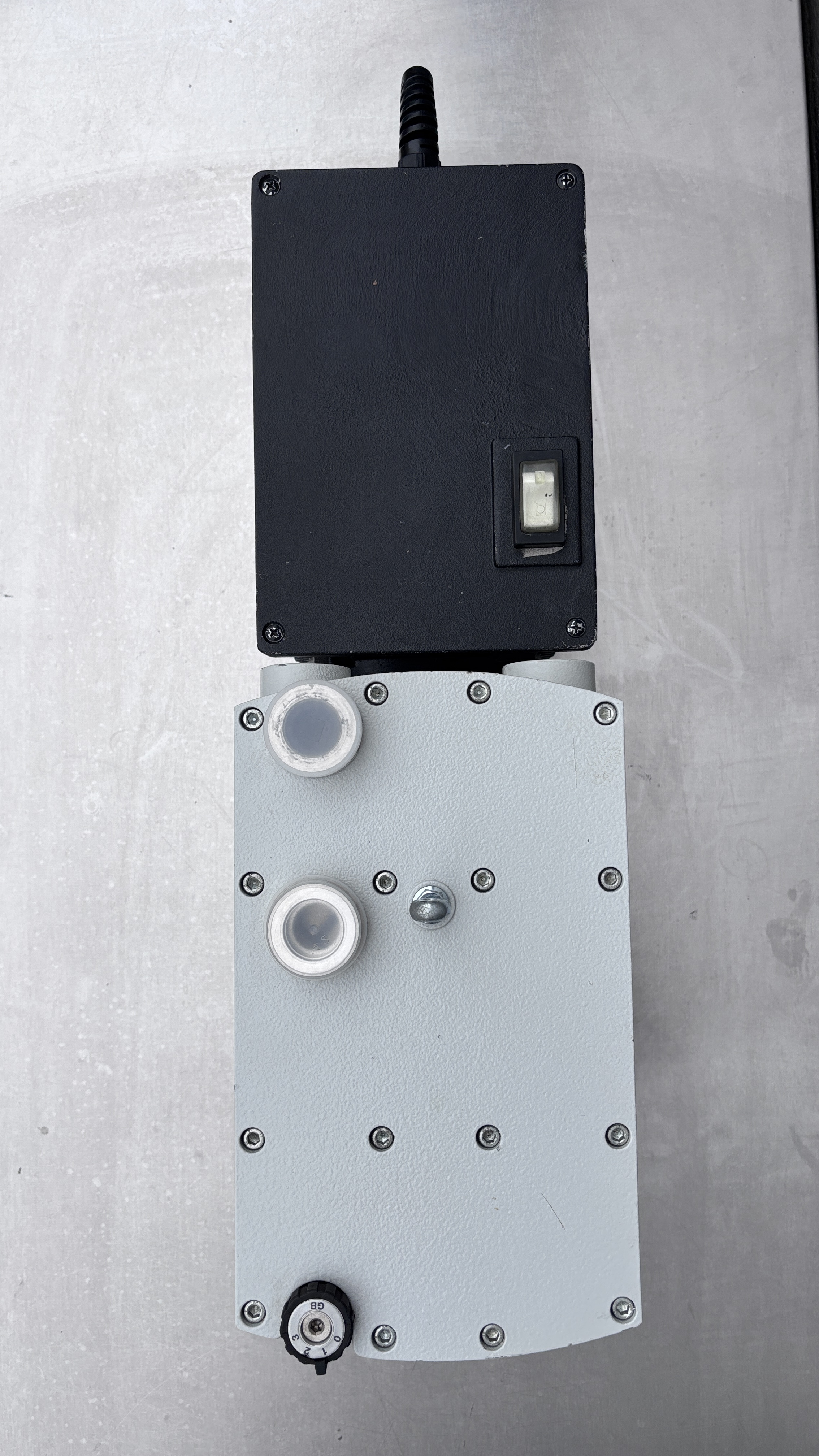

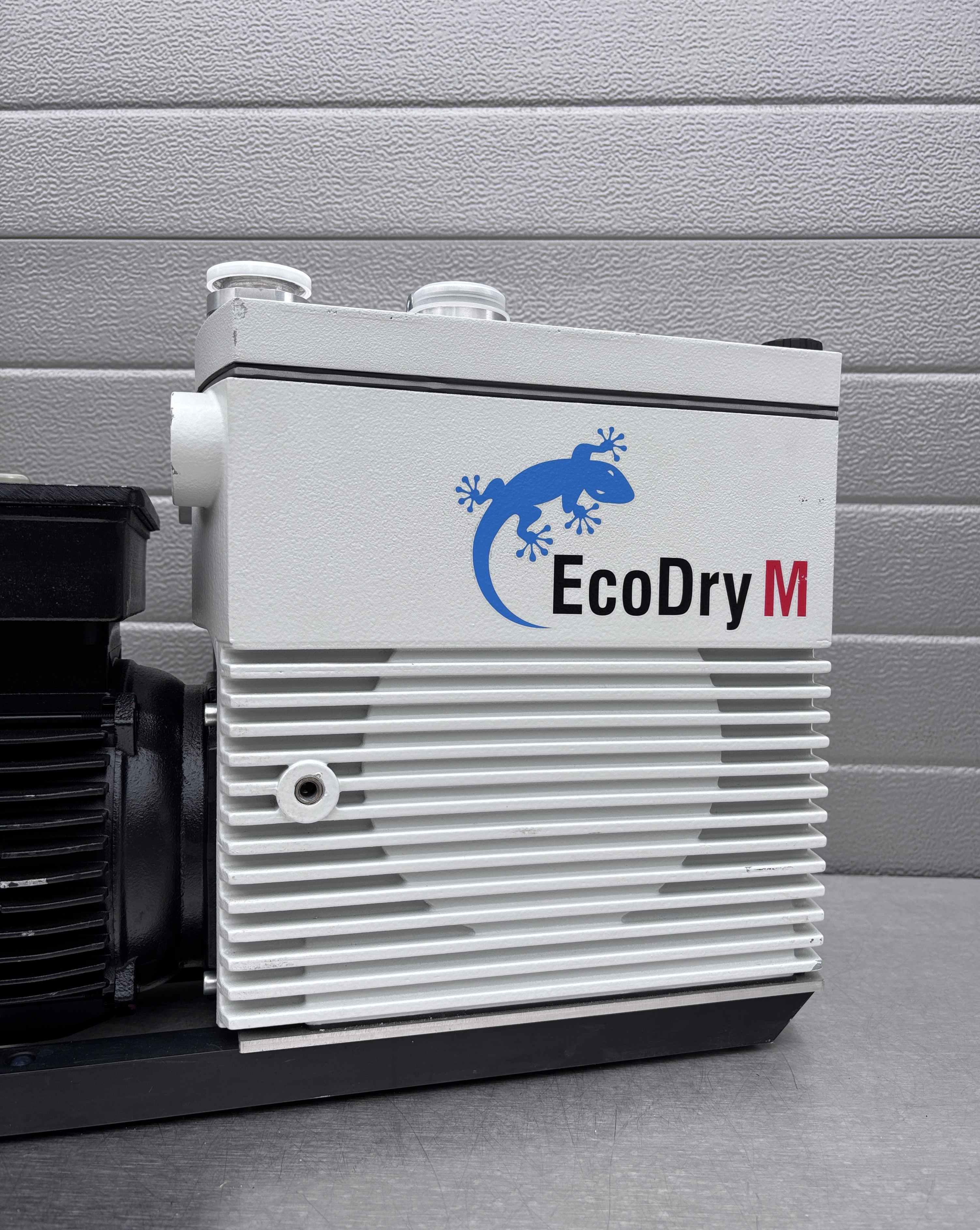

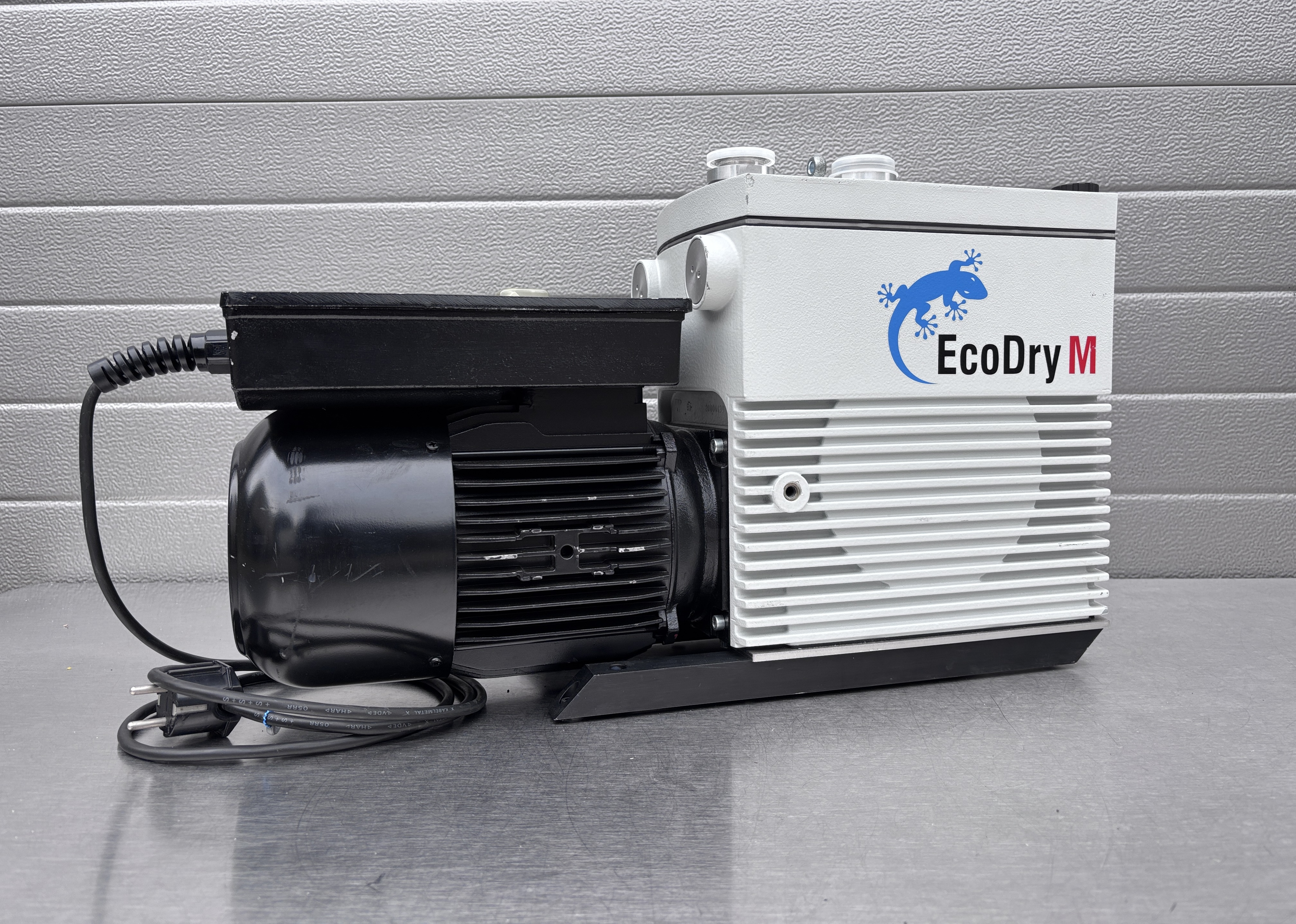

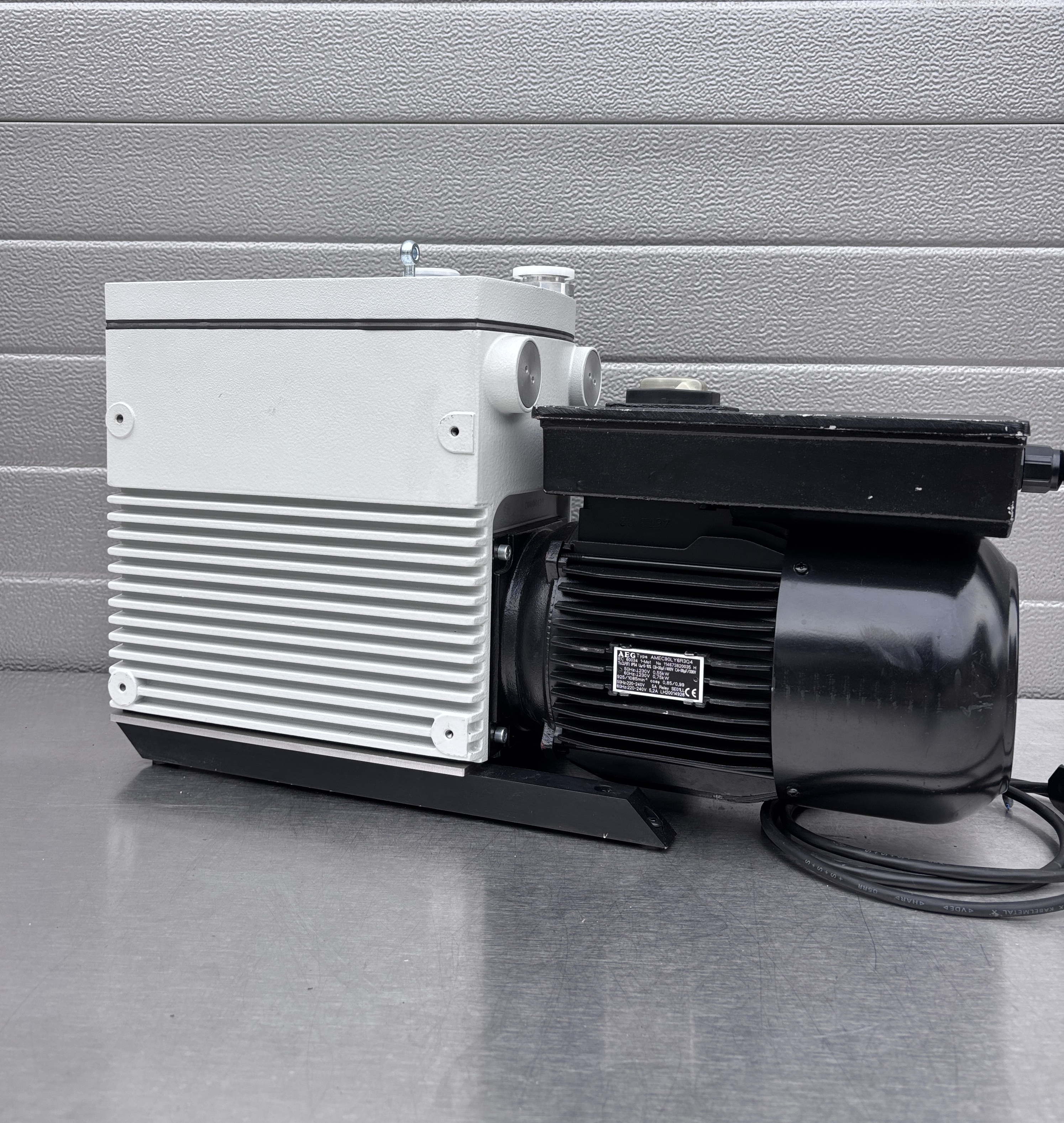

Please review all high-resolution original photographs carefully. They show the actual unit offered for sale and form part of the description.

Scope of delivery:

1 × Leybold EcoDry M15, Product No. 130002, including motor and mains cable, exactly as pictured.

No additional accessories are included unless specifically pictured or stated.

Worldwide shipping available.

Commercial invoice available.

Secure pallet / wooden crate packaging can be arranged.
