Hewlett Packard HP 85107A Vector Network Analyzer System

For sale is a complete classic Hewlett Packard HP 85107A Microwave Vector Network Analyzer System.

The system consists of an HP 8510B Network Analyzer, HP 8516A 45 MHz–40 GHz S-Parameter Test Set, and HP 8341B 10 MHz–20 GHz Synthesized Sweeper, installed in the original system cabinet.

System configuration

HP 8510B Vector Network Analyzer

• Microwave vector network analyzer
• Measurement of magnitude and phase
• S-parameter measurements including S11, S21, S12 and S22
• CRT display / processor system

HP 8516A S-Parameter Test Set

• Frequency range: 45 MHz to 40 GHz
• Two-port S-parameter test set
• Designed specifically for HP 8510 Network Analyzer systems
• Electronic RF switching
• External DC bias capability for active-device measurements

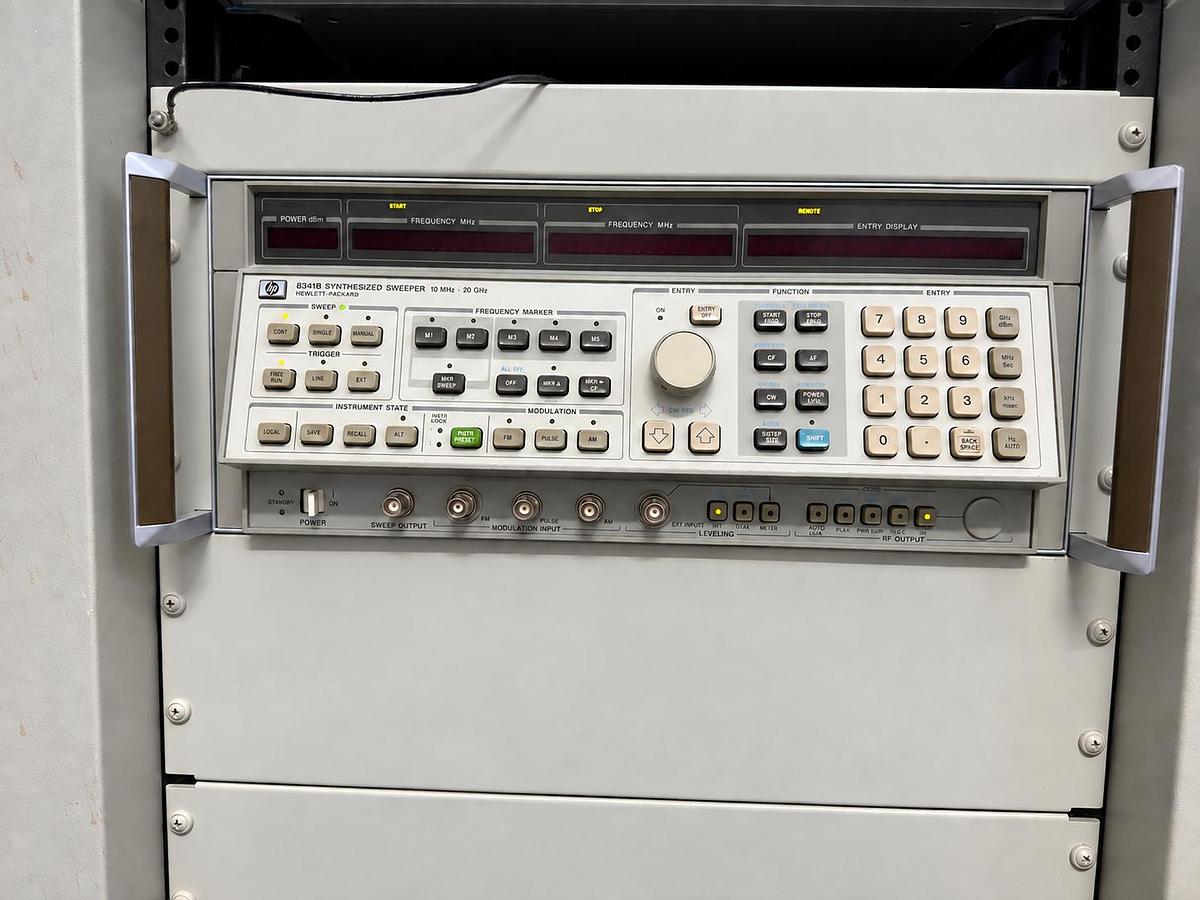

HP 8341B Synthesized Sweeper

• Frequency range: 10 MHz to 20 GHz
• Fully synthesized microwave RF source
• Compatible with HP 8510 systems

Important frequency information

The 8516A test set itself supports measurements up to 40 GHz.

However, the included HP 8341B source operates up to 20 GHz. Therefore, the usable measurement frequency of this particular configuration is limited by the installed source to approximately 20 GHz.

The 8516A may be used up to its 40 GHz capability when the system is configured with a suitable higher-frequency RF source.

History

According to the previous institutional owner, the system was originally acquired in approximately 1988/1989 and was previously used at a university research facility.

Condition

Used laboratory equipment with age-related cosmetic wear, minor scratches, marks and discoloration.

The system powers on.

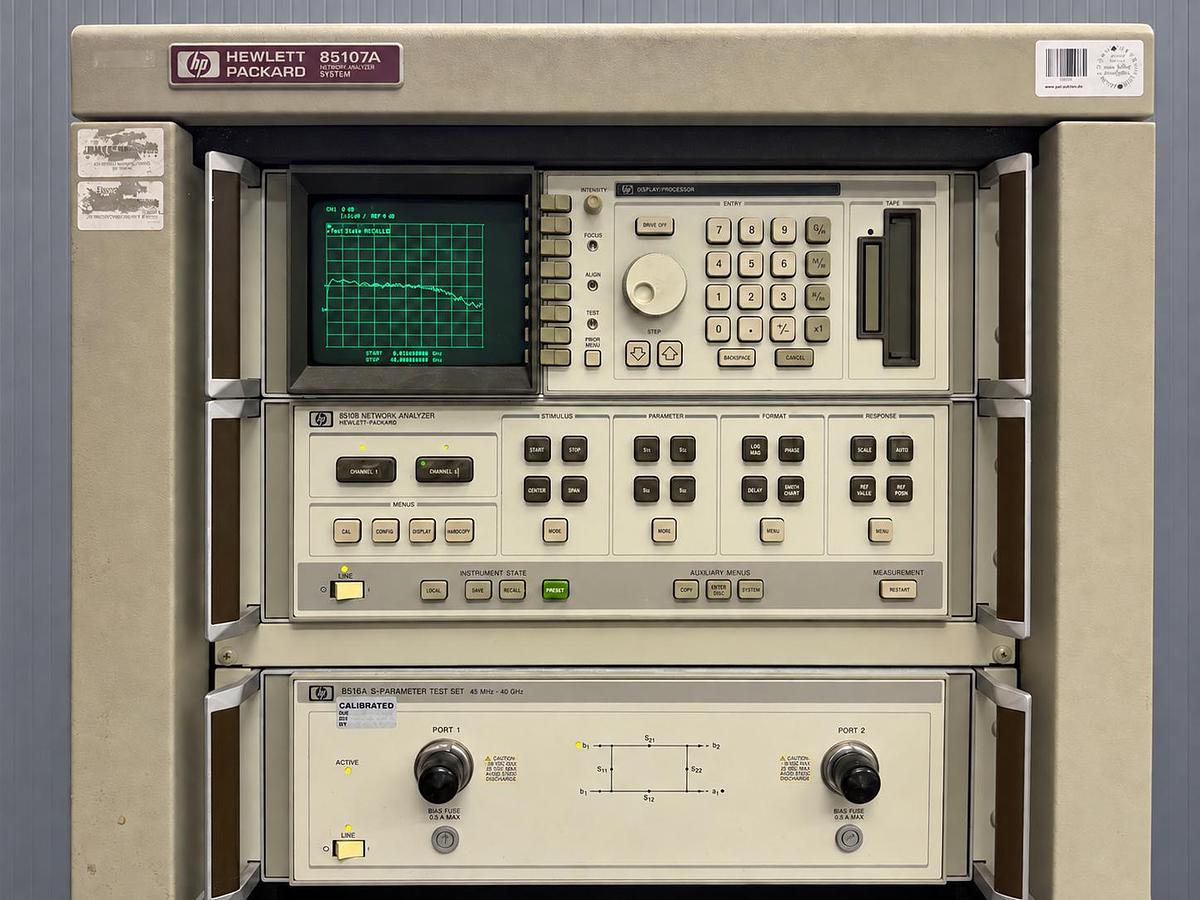

The HP 8510B CRT display operates and displays a measurement trace as shown in the photographs.

The system components power up; however, complete RF performance, measurement accuracy and calibration have not been fully verified.

POWER-ON TESTED / FURTHER RF TESTING REQUIRED

No current calibration certificate is supplied unless expressly stated otherwise.

Please inspect all photographs carefully. They show the actual equipment included in the sale.

Included

• HP 8510B Network Analyzer
• HP 8516A S-Parameter Test Set 45 MHz–40 GHz
• HP 8341B Synthesized Sweeper 10 MHz–20 GHz
• system rack/cabinet

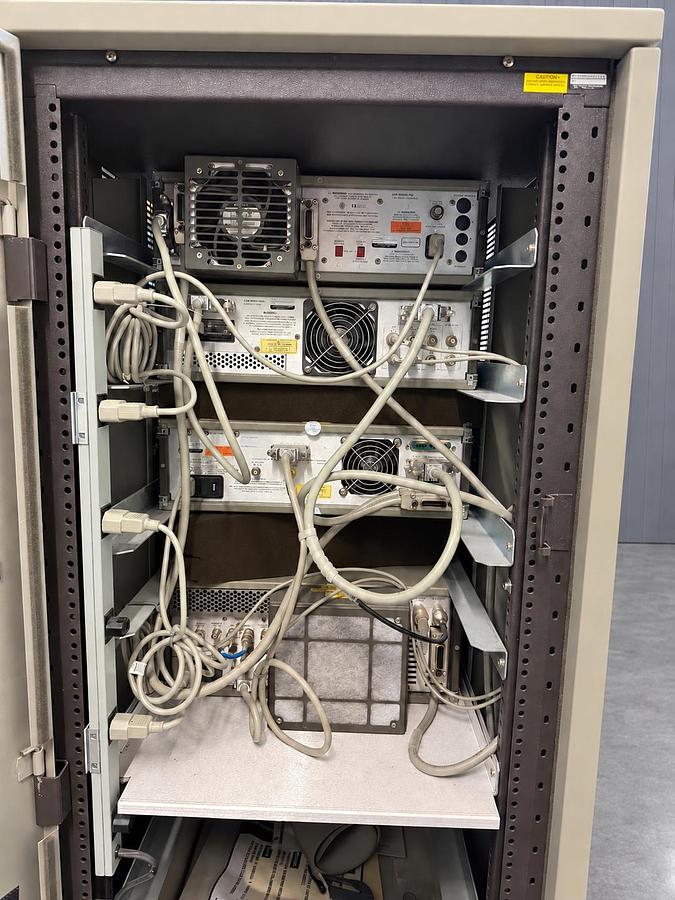

• interconnecting cables as pictured
• additional installed components shown in the photographs

Only items visible in the photographs or specifically mentioned above are included.

Applications

Suitable for:

• RF and microwave engineering
• vector network analysis
• S-parameter measurement
• amplifiers
• filters
• antennas
• microwave components
• RF research and development
• university laboratories
• telecommunications
• aerospace and defence electronics
• component characterization

Shipping

Worldwide freight shipping available.

Due to the size and weight of the complete system it will be professionally secured and packed for transport.

Please contact us for an exact shipping quotation.
